Broiler Chicken Battery Cage

Broiler Chicken Battery Cage - High-Density Automated Poultry Rearing System

Premium Broiler Rearing Solution from Shandong Huabang

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. presents its enterprise-grade Broiler Chicken Battery Cage system, manufactured from 275g hot-dip galvanized Q235 steel with a proven 15-year service life. This H-type multi-tier system (3-8 levels adjustable) measures 1.25m × 1m × 0.45m per unit and integrates automatic feeding, nipple drinking, and manure belt removal. Backed by 17 years of design expertise and deployed across 100+ countries, the system achieves 70% labor reduction while improving feed conversion ratios by 5-8%. Each installation is ISO9001 and CE certified, supported by OEM/ODM customization and comprehensive after-sales service including site planning, video guidance, and on-site technical support.

What Is a Broiler Chicken Battery Cage System?

A Cage represents a vertical stacking housing solution engineered for intensive meat chicken production from hatch to market weight. Unlike conventional floor systems, this multi-tier design maximizes land utilization by stacking birds vertically.

Three important industry concerns are addressed by the system. By using elevated wire flooring, it first stops the spread of soil-borne diseases. Second, low ammonia levels are maintained by automated manure removal using polypropylene belts. Third, limited mobility directs more dietary energy into the growth of muscles rather than physical activity.

When compared to conventional upbringing, professional designs yield density increases of 300–400%. This means that facilities that were previously only able to accommodate 10,000 birds can now accommodate 20,000–50,000 birds. Scalability is achieved without increasing the physical footprint of your operation.

Technical Specifications & System Configuration

Six Core Advantages for Modern Broiler Operations

Maximum Space Efficiency with Stress-Reduced Design

The tiered layout multiplies your facility's capacity while maintaining optimal bird welfare. Each tier provides 450-550cm² per broiler, ensuring sufficient space to prevent overcrowding stress. This balance between density and comfort directly improves weight gain uniformity across flocks.

70% Labor Cost Reduction Through Full Automation

Integrated systems handle feeding, watering, and waste removal without manual intervention. Automatic auger feeders distribute precise rations along each tier. Nipple drinkers provide constant fresh water access. Manure belts activate on scheduled cycles to transport waste outside the house, eliminating daily cleaning labor.

Superior Feed Conversion Ratio Performance

Controlled environments maintain thermo-neutral zones that optimize metabolic efficiency. Birds expend minimal energy on temperature regulation or unnecessary movement. This focus on growth delivers 5-8% FCR improvements, translating to significant feed cost savings across production cycles.

Biosecurity Excellence for Disease Prevention

Wire mesh flooring eliminates bird contact with fecal matter, breaking disease transmission cycles. Smooth galvanized surfaces resist bacterial colonization and simplify disinfection protocols. The elevated design prevents Coccidiosis and similar soil-borne pathogens, reducing antibiotic dependence by up to 60%.

Climate-Adaptive Customization

Configurations adjust to your regional conditions. Tropical installations feature enhanced ventilation with 5cm elevated center structures for heat dissipation. Cold-climate systems integrate insulation packages and precision heating integration. Each Broiler Chicken Battery Cage adapts to local temperature ranges, humidity levels, and seasonal variations.

Built for Longevity and Global Standards

The 3mm galvanized frame withstands corrosive ammonia environments for 15+ years. All components meet CE certification requirements for international markets. The system supports Halal processing standards, EU animal welfare regulations, and USDA export compliance. Our patent portfolio includes 49+ registered innovations protecting structural and automation technologies.

Practical Applications Across Farm Scales

Large Commercial Operations (50,000+ Birds)

Industrial complexes integrate multiple cage rows with centralized Environmental Control Systems. Tunnel ventilation synchronizes with tier layouts to deliver uniform air quality. Automated monitoring tracks growth rates, feed consumption, and mortality per section for data-driven management.

Mid-Scale Farms with Land Constraints

Operations limited to 1-2 hectares utilize vertical stacking to achieve commercial volumes. A 4-tier Cage system fits 15,000 birds in space previously housing 5,000. This density allows smaller farms to compete with larger producers on per-bird efficiency metrics.

Contract Growing for Integrated Processors

Standardized cage configurations ensure consistent bird sizing for processing plant requirements. Uniform growth conditions produce flocks with minimal weight variation, maximizing Grade A carcass yields. Front-access doors facilitate automated harvesting systems, reducing catching stress and meat quality degradation.

Quality Control & Manufacturing Standards

Every cage system undergoes five-stage inspection protocols before shipment. Magnetic induction testing verifies zinc coating thickness meets 275g/m² minimums. Surface smoothness audits prevent foot pad dermatitis and breast blisters. Structural load testing applies 1.5x maximum bird weight to confirm zero deflection.

Automated belt systems run 72-hour continuous operation tests. Tracking alignment remains within 2mm tolerance to prevent derailments. Solder joint tensile strength testing destroys sample welds at 3x operational stress, validating weld integrity across the structure.

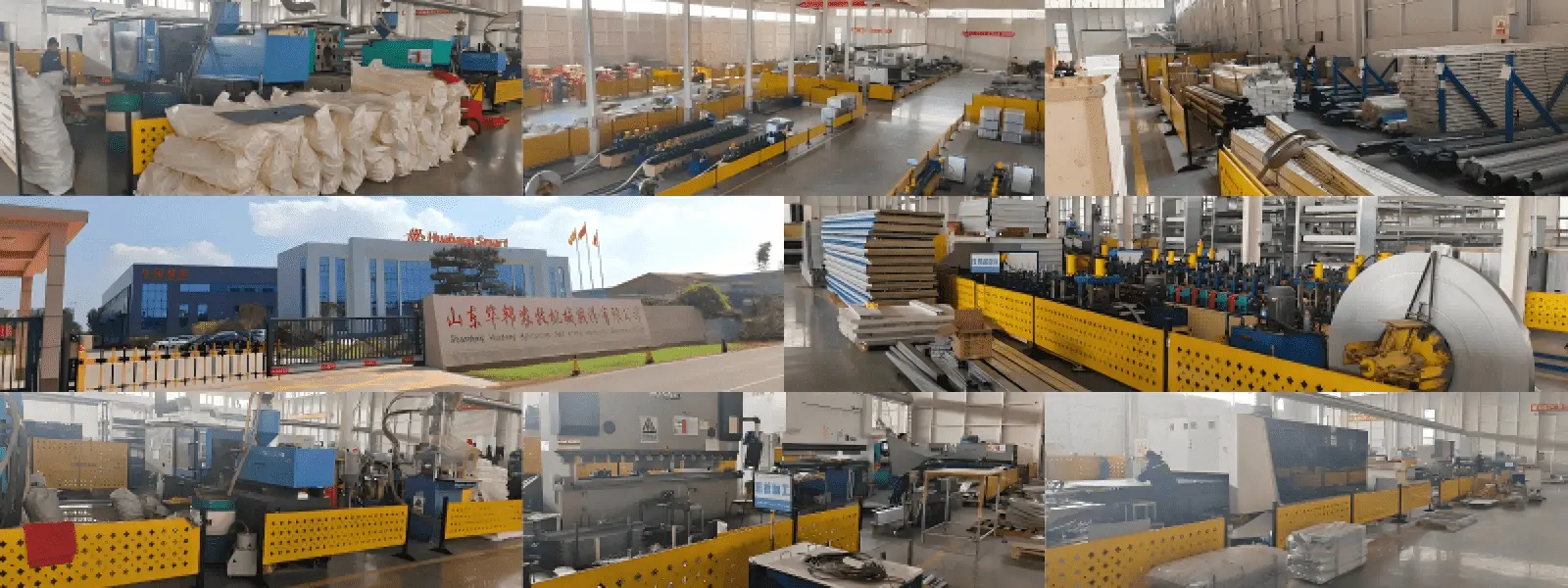

Our Qingzhou facility operates ISO9001-certified production lines with real-time quality monitoring. Each cage carries traceable batch numbers linking to material certifications and test reports. This documentation supports international import requirements and third-party audits.

Frequently Asked Questions

Q: How does the system improve Feed Conversion Ratio specifically?

The Cage restricts unnecessary movement while maintaining optimal temperatures. Birds convert 5-8% more feed into muscle because energy isn't lost to locomotion or thermoregulation. Automated feeding prevents A:competition stress that causes uneven consumption.

Q: What stocking density do you recommend for 2.5kg market weight targets?

A:For broilers reaching 2.5kg, maintain 500-550cm² per bird. This provides adequate space for final growth phases while maximizing facility capacity. Our team provides density calculations based on your target weight and growth curve.

Q: Can the flooring accommodate day-old chicks safely?

A:Yes, systems include removable plastic chick inserts that cover wire mesh during the first 7-10 days. These provide stable footing for small feet, then remove easily as birds mature. The main mesh features 12mm × 25mm spacing optimized for adult broilers.

Q: How does manure removal work in 6-tier configurations?

A:Each tier has an independent PP belt positioned 15cm below the cage floor. Belts activate twice daily, transporting waste to a transverse conveyor at row ends. This prevents ammonia buildup and maintains house air quality at safe levels below 25ppm.

Q: What automation integrations are available?

A:Our systems connect with environmental controllers managing ventilation, heating, and cooling. Feeding schedules synchronize with growth phases through programmable logic controllers. Weight monitoring platforms integrate with cage floors to track flock performance in real-time.

Q: What's included in your installation support?

A: We provide detailed CAD layouts, video installation tutorials, and printed assembly manuals. For large projects, our engineers conduct on-site supervision and crew training. Post-installation, we offer remote troubleshooting and spare parts supply through our 100+ country distribution network.

Contact Us for Custom Solutions

Ready to transform your broiler operation with proven automation technology? Our engineering team designs tailored Broiler Chicken Battery Cage systems matching your climate, scale, and market requirements. Request detailed specifications, ROI calculations, or sample service today.
