H Type 3 Tier Broiler Chicken Cage

H Type 3 Tier Broiler Chicken Cage - High-Density Automated Poultry Housing System

Premium 275g Galvanized Steel Construction for Industrial Broiler Production

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. presents the H Type 3 Tier Broiler Chicken Cage, a vertical intensive housing system engineered with premium 275g hot-dip galvanized steel framework. This industrial-grade solution maximizes stocking density by 300% compared to conventional floor systems, accommodating 15-18 broilers per unit across standardized dimensions of 125cm × 100cm × 45cm. With integrated automatic feeding and manure removal systems, the cage achieves 70% labor reduction while maintaining optimal bird welfare. Backed by ISO9001 and CE certification, our 3mm extra-thick steel frame construction ensures 15-year service life with superior corrosion resistance, supported by a 12-month international warranty and comprehensive OEM/ODM customization services for operations ranging from 1,000 to 50,000+ birds.

What Makes H Type Configuration Superior for Broiler Operations

The H-frame structural design provides exceptional load-bearing capacity through vertical steel columns that support automated equipment integration. Unlike A-type configurations, this system allows seamless installation of centralized feeding tracks and synchronized manure belt systems beneath each tier.

The robust framework eliminates mid-span sagging issues common in lightweight alternatives. This ensures consistent cage floor levelness throughout the 42-day grow-out cycle, preventing feed and water spillage that leads to wet litter conditions.

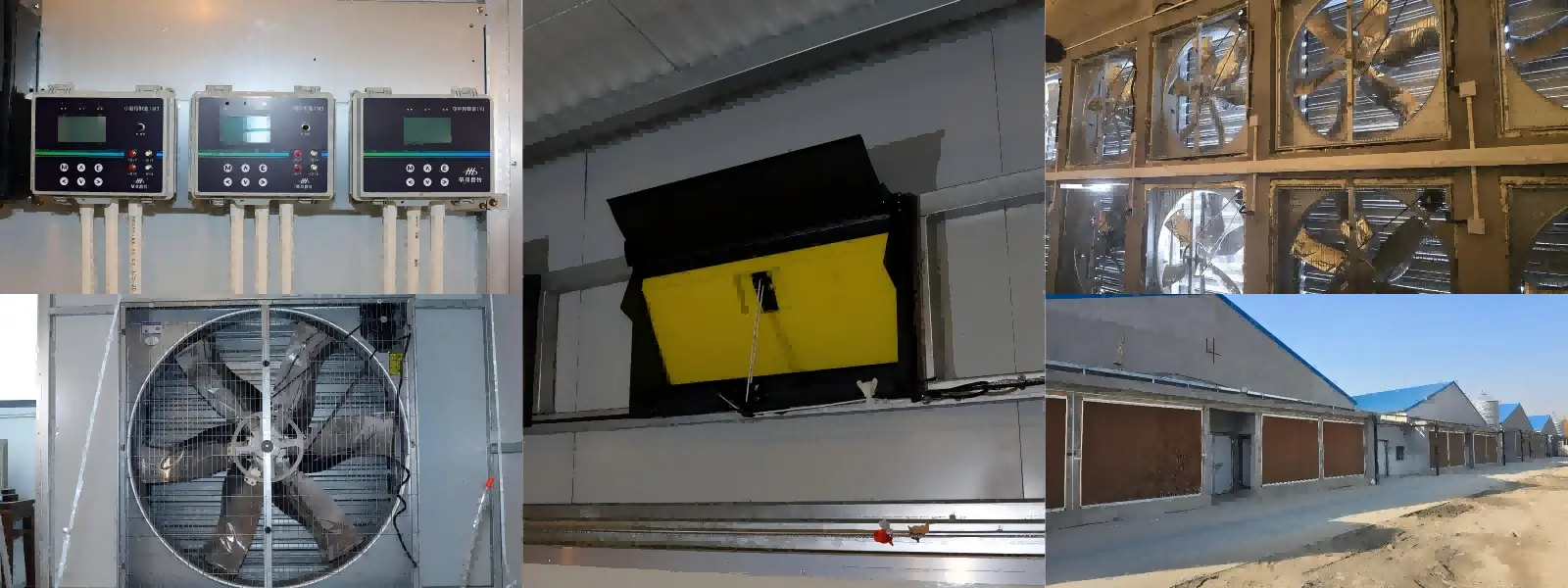

Vertical stacking architecture creates natural thermal stratification zones. Cooler air settles at lower tiers while warmer air rises, allowing precise climate zoning when paired with tunnel ventilation systems—critical for maintaining uniform flock performance across all levels.

Technical Specifications and System Components Of H Type 3 Tier Broiler Chicken Cage

Advanced Automation for Labor Efficiency and Bird Health

Your operation benefits from fully synchronized feeding systems that deliver precise ration amounts based on bird age and weight targets. The automatic chain feeder travels along the H-frame's central track, ensuring uniform feed distribution across all three tiers simultaneously.

Nipple drinking lines with pressure regulators maintain consistent water flow rates of 60-80ml per minute per nipple. This prevents dehydration during peak consumption periods while minimizing water wastage that contributes to high humidity levels.

The integrated manure belt removal system operates on programmable schedules, typically twice daily. This frequent removal keeps ammonia concentrations below 20ppm—the critical threshold for respiratory health and feed conversion ratio optimization.

Real-time weight monitoring sensors embedded in selected cage units provide daily growth curve data. This enables early detection of performance deviations and facilitates data-driven adjustments to feeding programs or environmental parameters.

Biosecurity and Disease Prevention Engineering

The fully slatted floor design eliminates bird contact with fecal matter, breaking the transmission cycle for coccidiosis, E. coli, and Salmonella. Each tier operates as an independent hygiene zone with dedicated manure collection underneath.

Smooth galvanized surfaces resist bacterial biofilm formation that occurs on rough or porous materials. The zinc coating's antimicrobial properties further suppress pathogen colonization on cage contact surfaces.

Modular construction allows complete disassembly for deep cleaning and disinfection between production cycles. All components withstand high-pressure washing and quaternary ammonium-based sanitizers without structural degradation.

The elevated cage structure creates a physical barrier against rodents and wild birds—primary vectors for introducing avian influenza and Newcastle disease into commercial flocks.

Climate Adaptation and Regional Customization

For Southeast Asian tropical environments, the H Type 3 Tier Broiler Chicken Cage configuration includes wider tier spacing (50cm height) and enhanced cross-ventilation openings to facilitate heat dissipation during 35°C+ ambient temperatures.

Central Asian operations receive insulation-compatible frame modifications and enclosed side panels to retain heating system efficiency during winter months while maintaining summer cooling capacity.

Middle Eastern installations incorporate dust-resistant bearing assemblies and UV-stabilized manure belt materials to withstand arid conditions and intense solar radiation exposure.

European Union-compliant configurations meet welfare density requirements of 33kg/m² maximum stocking weight, with automated monitoring systems that trigger alerts before regulatory thresholds are exceeded.

Quality Assurance and Manufacturing Standards

Ultrasonic galvanization thickness testing is performed on each production batch to ensure the zinc coating surpasses the minimum specification of 275g/m². This guarantees corrosion resistance in high-ammonia poultry house conditions for more than 15 years.

Testing for tensile strength confirms that wire mesh couplings can withstand 500N stresses without deforming. When bird weight peaks at 2.5–3.0 kg per broiler during the final grow-out phase, this avoids catastrophic cage breakdowns.

Testing in a salt spray chamber for 72 hours replicates the accelerated corrosion that occurs after ten years of operation. Certification clearance for overseas shipping is granted only to batches that exhibit zero rust penetration.

To ensure dependable functioning during more than 30,000 bird production cycles, motor thermal protection systems and automatic belt-centering mechanisms go thorough 1,000-cycle endurance testing.

Application Scenarios and Operational Scalability

Large-Scale Intensive Operations: By fully integrating automation, facilities that house more than 30,000 birds receive the best return on investment. With standardized building extensions, the system's modular architecture enables expansion from 20,000 to 100,000+ birds.

Land-Constrained Urban Periphery Farms: Businesses with high real estate expenses increase production within their current footprints. Three-tier caging in a 1,000 m² facility yields the same volume as a 3,000 m² floor-rearing system.

High-Biosecurity Contract Growing: Tier-isolated disease containment benefits integrator-owned farms that serve major processors. During disease outbreaks, individual layer depopulation keeps production continuing while preventing complete flock loss.

Export-Oriented Halal Production: Strict Middle Eastern import regulations are met by systems set up with authorized stunning-free harvest access points and comprehensive production traceability paperwork.

Frequently Asked Questions

Q: What is the maximum bird density per cage unit?

A: Depending on the desired slaughter weight, the system can hold 15–18 broilers per cage unit. 18 chickens per cage are typical for 2.0 kg market weight, whereas 15 birds are needed for 2.8 kg targets to avoid overcrowding stress.

Q: How does this system prevent breast blisters?

A: The cage bottom uses high-density plastic mat overlays and a unique wire diameter of 3.5 mm. This reduces pressure points that lead to tissue injury by producing a cushioned support surface that appropriately distributes body weight.

Q: Is it possible to automate the manure removal system to a timer?

A: Programming for scheduled manure removal is possible with the integrated PLC control system. Standard setups operate twice a day at 6:00 and 18:00. Depending on stocking density and ventilation capacity, unique intervals are possible.

Q: How long does it take to install a 20,000-bird house?

A: Because of modular pre-fabrication, expert installation teams finish a three-tier system in ten to fifteen days. Cage assembly, automation system integration, and complete commissioning including test runs are all included in this.

Q: Is it appropriate for young girls?

A: Definitely. Birds from day 1 to day 42 can be accommodated by the system's adjustable-height drinking lines and specific brooding pads. The crucial first-week brooding requirements of 32–34°C are supported by temperature zoning capabilities.

Q: What is the necessary maintenance schedule?

A: It takes fifteen minutes to visually inspect feeding and watering systems each day. It takes thirty minutes to check the belt tension and lubricate the bearings once a week. Using the right power washing equipment, a monthly deep cleaning during flock turnover takes four to six hours.

Contact Us for Custom Solutions

Ready to transform your broiler operation with proven H Type 3 Tier Broiler Chicken Cage? Our engineering team provides complimentary site assessments and custom configuration proposals tailored to your specific climate, scale, and market requirements.

Reach our international sales department at admin@huabangsmart.com for technical specifications, project quotations, and video installation guidance. Experience the Huabang advantage with factory-direct pricing and comprehensive global after-sales support.
