Poultry Automatic Nesting Box with Egg Conveyor for Commercial Layer Farms with Low Breakage Design

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. has been designing layer equipment since 2012, and its poultry automatic nesting box with egg conveyor is used in commercial layer farms in more than 100 countries. Each unit is 1.2m long and 1.4m broad (1.88m with perch) and 2m high with a nest area of 1.19m by 0.4m inside for comfortable hen laying. The units are made from zinc-aluminium-magnesium plate. The conveying belt is driven by a 0.4 kW front motor and a 0.75 kW rear motor. This keeps egg breakage to 0.3%. Each set weighs 40kg and comes with a 1 year guarantee.

What Is This Nesting Poultry Automatic Nesting Box with Egg Conveyor System?

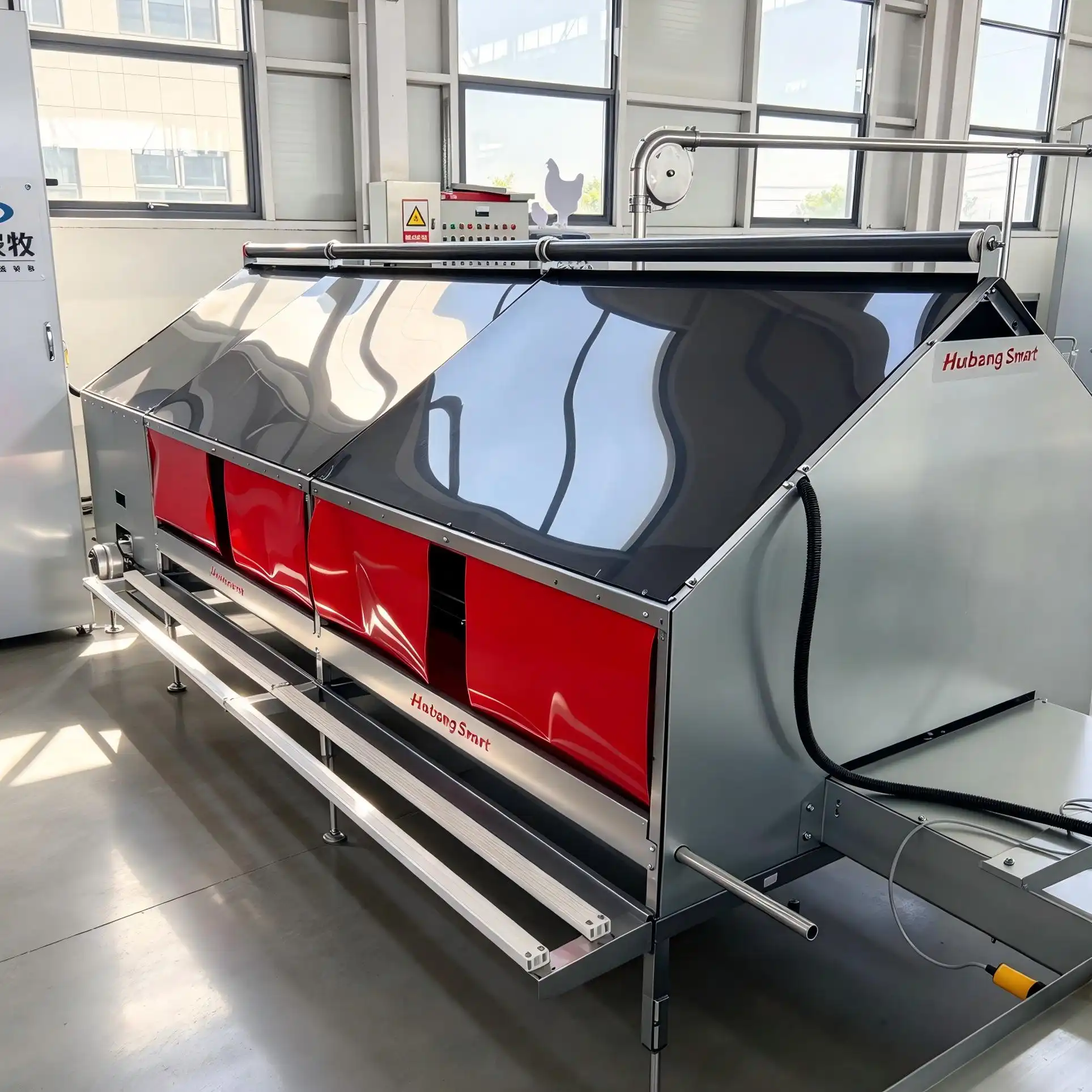

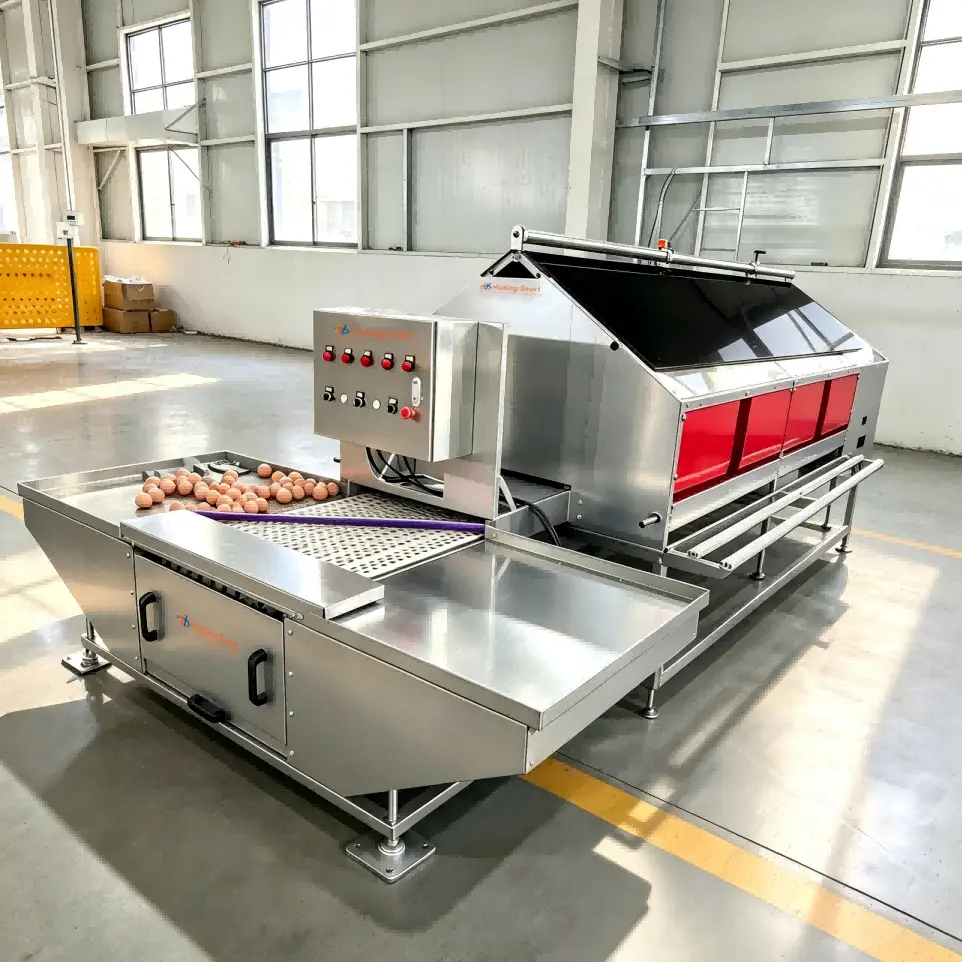

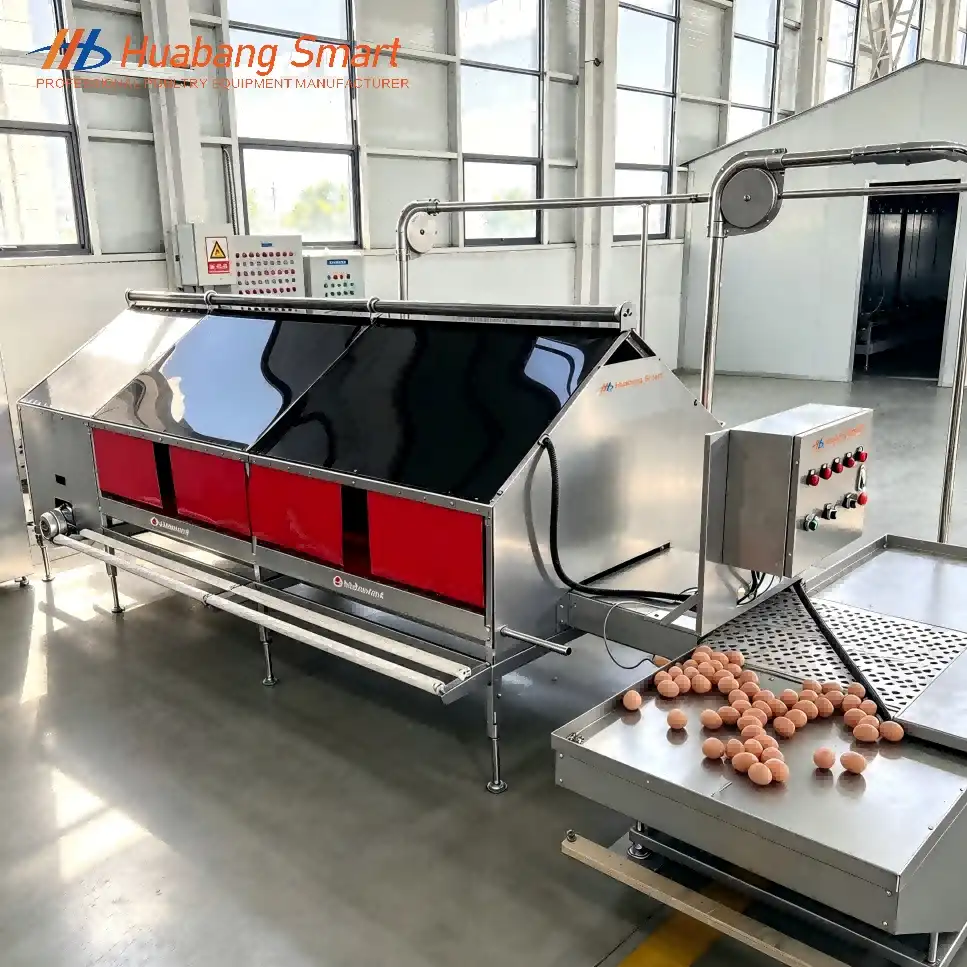

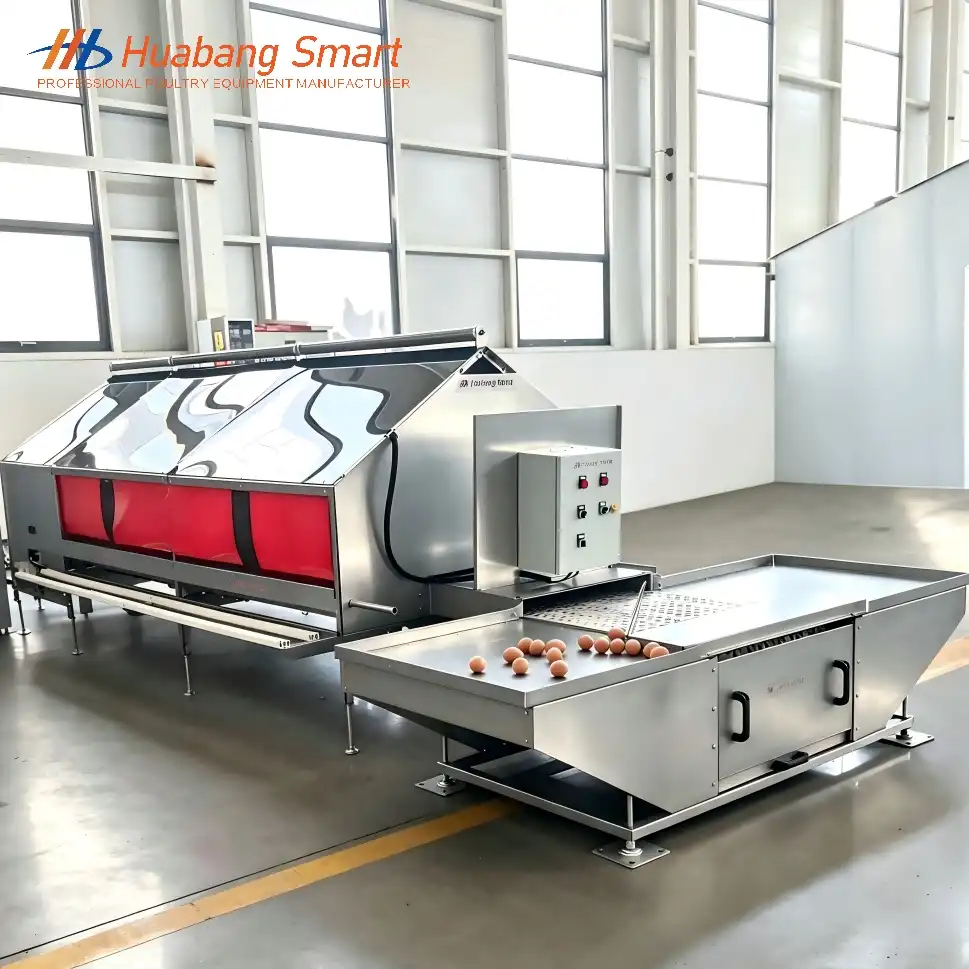

A laying nest, egg-collecting platform, storage box, and conveyor belt are all integrated into one mechanical device for commercial laying hens in this product. The hens lay their eggs in the nest and the eggs softly slide onto the belt below for collecting.

The nest body is made from zinc-aluminum-magnesium plate, a material that resists corrosion in the humid chicken house atmosphere. The nest tilt angle of 8° allows for the natural rolling out of eggs without harsh handling and also helps to keep chickens relaxed while sitting.

It will handle A-frame and H-frame cage systems and slat breeder operations. It is connected to central collecting lines so eggs are transported from the nest to the packaging room without physical lifting.

Key Features and Advantages

The buffer anti-breakage egg rolling structure may effectively decrease egg breakage by softly and stably moving the eggs while transporting, thereby reducing pecking damage.

This nesting system has an integrated intelligent anti-broody lift. It lifts the nest body at nite, so hens can not sleep in it at nite. this keeps eggs clean and faecal contamination free

The back end of the belt enables real time tension adjustment and automated deviation correction, keeping the belt running straight and reducing shutdowns for human calibration.

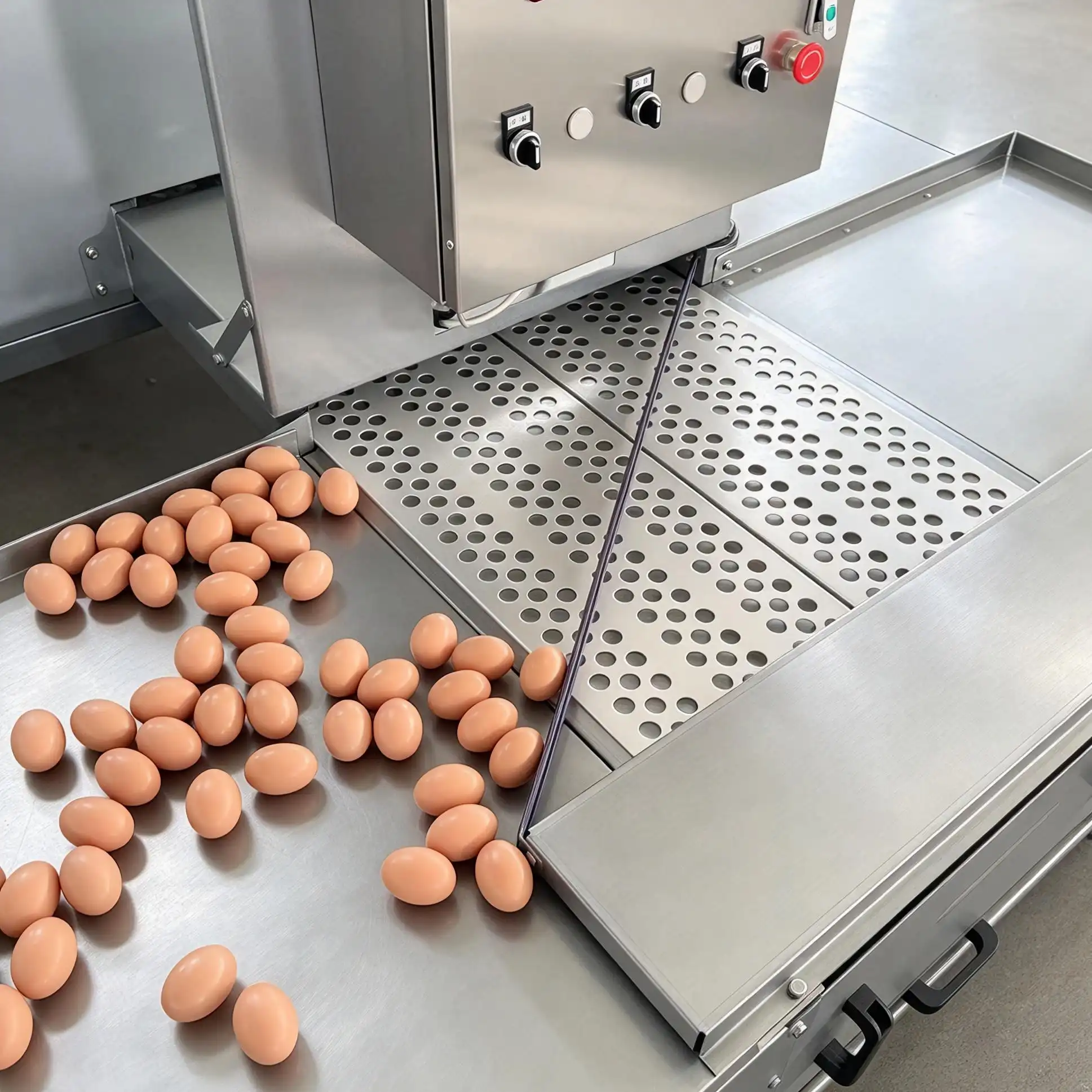

The nest, egg platform, storage box and tail structure are one connected unit. It connects to a range of automated egg collecting lines, so it works with regular hen houses, and it allows complete project matching for bigger farm layouts.

The transition from manual egg picking to automation egg collection may cut the daily labour time in collecting eggs throughout the laying house.

Technical Specifications

Material and Structural Design

The zinc-aluminum-magnesium plate prevents corrosion from manure and moisture inside chicken buildings, enabling the structure remain robust despite years of washdowns and everyday contact with droppings.

The 8° nest tilt harnesses gravity to slide eggs out of the laying region. The eggs come to the belt without any shock along with the buffer roller arrangement.

Each frame rests on an elevated platform to provide air flow below the nest body. Increased air circulation helps prevent moisture build-up and hence helps limit the danger of bacterial development around the laying area.

Applications

In commercial battery cage systems with A-frame or H-frame layouts, the poultry automatic nesting box with egg conveyor functions effectively. Under this high density conditions the belt can accommodate variable egg loads at peak laying hours without jamming.

It also works well for avian breeder nesting systems on slat flooring. These surroundings include more feathers and litter dust, therefore the self-correcting belt helps to eliminate drive motor problems caused by debris build-up.

Smaller enterprises gain too. The device is suitable for private farms and for breeder hens in large-scale breeding operations, with adjustable choices for varied farm sizes.

Quality Control and Testing

Before installation, the conveyor belt is checked for straightness in all its parts. A belt that is not quite straight will likely to wander sideways, leading to edge fraying and egg jams eventually.

Tensile strength and elongation are also tested under load circumstances. The low elongation prevents the belt from stretching out so you don’t have to do regular re-tensioning operations.

The materials are resistant to exposure to ammonia and moisture typical to chicken buildings, so the belt and frame can survive cleaning cycles and normal everyday farm conditions.

Customization and Support

The length of your chicken house allows you to choose the number of each poultry automatic nesting box with egg conveyor unit so that the layout suits your current barn configuration. OEM and ODM are available, design according to your drawings and particular needs.

Professional specialists offer installation and commissioning instructions and on-site support as required. Standard manufacturing time is 30-60 days with factory-direct pricing and after-sales service for foreign consumers.

FAQ

Q: For what hens is this automated chicken nest box suitable?

A: It is usually used for commercial laying hens, but it is also suitable for producing hens in large-scale chicken breeding farms.

Q: Can we adapt the number or the size to our chicken house?

A: Yes. We are able to add more nest units and change the arrangement to fit the length of your chicken house.

Q: Do you provide technical help for installation and commissioning?

A: Yes, our professionals provide instruction and help throughout the installation and commissioning process.

Q: What percentage of eggs break in this roll out nest box?

A: The breaking rate is still less than 0.3% under the usual feeding management of the conventional installation.

Q: Is this product suitable for backyard gardening and small farms?

A: Yes, it is applicable to commercial chicken farms and tiny backyards breeding setups.

Q: How long does the egg belt last?

A: The belt is intended to provide steady performance over time, under typical working circumstances, with frequent cleaning and periodic tension checks.

Contact Us

Do you have more questions about the poultry automatic nesting box with egg conveyor? For pricing, drawings, or technical details on this nesting system, email us at ginny260831@gmail.com.
