Chicken Cage For Layers Poultry Farming
Size: 1.2m × 1.2m × 0.45m
Highlights: Automatic egg collection, feeding system, and manure removal
Warranty: Supported with a 1-year warranty
Customization Service: OEM/ODM available and customization based on technical drawings
Additional Services: Sampling, installation assistance, and poultry farming consultation
- Product Description
Chicken Cage For Layers Poultry Farming
Premium Layer Housing Solutions from Huabang Smart
Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. delivers enterprise-grade Chicken Cage For Layers Poultry Farming systems engineered with 275g/m² hot-dip galvanized steel frames and aluminum-zinc coated wire mesh. Our H-type battery cage configurations accommodate 90-200 birds per set across customizable 3 to 8-tier arrangements, achieving egg breakage rates below 0.3%. Huabang's automated systems, which have been deployed in more than 100 countries and have 17 years of manufacturing experience, may cut labor costs by up to 80% while upholding ISO9001 and CE certification standards. With a 1-year international guarantee, each 1.2 m × 1.2 m × 0.45 m container incorporates automated egg collection, feeding systems, and manure removal devices.
Understanding Modern Layer Housing Systems
Cage represents specialized intensive housing solutions designed for commercial egg production. These systems maximize vertical space utilization while addressing critical industry challenges.
Traditional floor-rearing methods expose birds to soil-borne diseases like Coccidiosis and result in high feed wastage. Modern cage systems isolate layers from their waste, creating biosecure environments that standardize output quality.
You gain control over every production variable. Temperature, humidity, and feed distribution become measurable metrics rather than guesswork. This precision translates directly to improved egg quality and flock health.
Technical Specifications Of Chicken Cage For Layers Poultry Farming
| Parameter | Specification |
|---|---|
| Cage Type | H-type Layer Battery Cages with Automatic Egg Collection |
| Material | Hot Dip Galvanized Steel (275g/m²) |
| Wire Mesh | Q235 International Bridge Steel Wire |
| Cage Dimensions | 1.2m × 1.2m × 0.45m |
| Capacity per Set | 90-200 Chickens |
| Tier Options | 3/4/5/6/8 Tiers Customizable |
| Floor Slope | 7° to 9° for Optimal Egg Roll-Out |
| Egg Breakage Rate | Less than 0.3% |
| Service Life | 15-20 Years |
| Warranty | 1-Year International Coverage |
| Space per Bird | 400-450 cm² |
Material Properties and Structural Excellence
Your investment requires materials that withstand decades of continuous operation. Huabang systems utilize Q235 international bridge steel wire selected for high tensile strength and structural integrity.
The hot-dip galvanization process applies zinc coating at 275-500g/m² thickness, creating a chemical bond that prevents rust for 15+ years. This complies with ISO 1461 standards and outperforms cold galvanizing alternatives significantly.
Each cage features a precisely calculated 7° to 9° floor slope. This angle ensures eggs roll gently away from hens immediately after laying, eliminating impact damage. Wire spacing prevents head-trapping while maintaining optimal cross-ventilation for ammonia dispersion.
The 3mm extra-thick galvanized frame construction provides superior load-bearing capacity. Welding spots undergo pressure testing to withstand 200-500N of force per intersection, preventing structural collapse even at maximum stocking density.
Comprehensive Automation Advantages
Huabang's end-to-end automation eliminates manual intervention across all critical operations. Automated feeding systems deliver precise nutrient ratios throughout the production cycle, optimizing feed conversion efficiency.
Nipple drinkers manufactured from food-grade materials provide continuous water access without spillage. Automated manure removal belts extract waste continuously, maintaining air quality and reducing pathogen exposure.
The egg collection system operates on synchronized timing belts. Cushioned receiving trays transport eggs from cage to storage without human contact, preserving shell integrity and reducing bacterial contamination.
You'll reduce labor requirements by 80% compared to traditional systems. One operator can manage 50,000+ birds efficiently, transforming your cost structure and operational scalability.
Quality Control Standards
Every Huabang Chicken Cage For Layers Poultry Farming unit undergoes rigorous inspection protocols before shipment. Electromagnetic thickness gauges verify zinc coating uniformity across all weld points and surface areas.
Tensile strength analysis confirms wire can support collective bird weight without sagging throughout the expected service life. Surface smoothness audits eliminate burrs and sharp zinc slag that could cause foot lesions or feather damage.
Our automated system synchronization testing validates belt alignment and speed consistency. Feed distribution accuracy undergoes calibration to ensure uniform nutrient delivery across all cage tiers.
CE certification and ISO9001 compliance demonstrate adherence to international manufacturing standards. Your operation gains assurance that equipment meets both welfare requirements and production efficiency benchmarks.
Diverse Application Scenarios
Large-scale industrial operations deploy H-type configurations in climate-controlled houses. These closed environments accommodate up to 50,000 birds per shed with integrated cross-conveyor systems and environmental monitoring.
Tropical regions benefit from A-type ladder structures that maximize natural cross-ventilation. This design reduces cooling costs while maintaining optimal laying temperatures in high-humidity climates.
Pullet-to-layer transition facilities utilize adjustable floor meshes and feeding heights. These configurations support physiological development from 9 to 18 weeks, ensuring smooth progression to peak laying phases.
Your specific requirements determine the optimal configuration. Whether operating in arid, temperate, or tropical zones, modular designs scale from 500 to 100,000+ birds with customized climate adaptations.

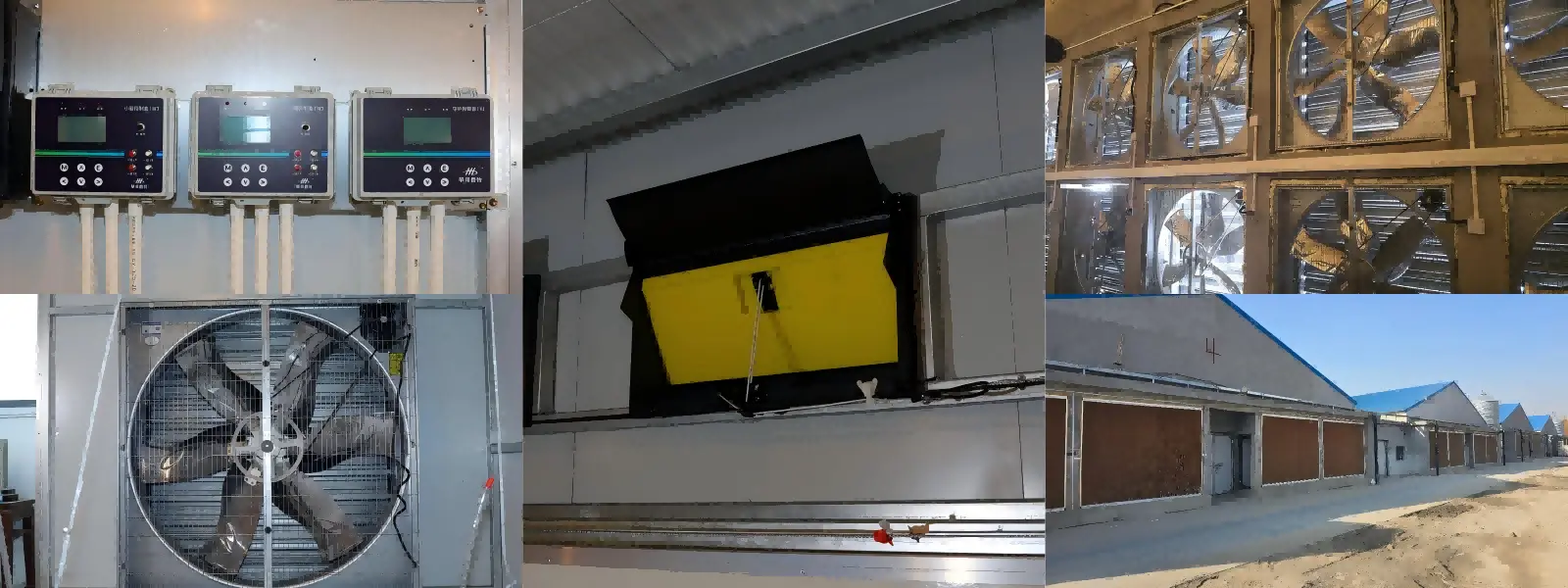

IoT Integration and Smart Monitoring
Optional sensor packages track temperature, humidity, ammonia levels, feed consumption, and laying rates in real-time. Integrated data transmission enables remote monitoring via mobile applications or PC dashboards.
You receive instant alerts when environmental parameters deviate from preset ranges. Historical data analysis reveals production trends and enables predictive maintenance scheduling.
This intelligence layer transforms reactive management into proactive optimization. Feed adjustments, ventilation control, and flock health interventions become data-driven decisions rather than intuitive guesses.
Customization and Global Support
Huabang provides OEM/ODM services tailored to your technical specifications. Our engineering team works from your drawings to develop configurations matching local infrastructure and biosecurity requirements.
The standard production cycle ranges from 30-60 days depending on order complexity. Factory-direct pricing eliminates distributor markups while maintaining comprehensive quality assurance.
Installation support includes detailed video guidance, configuration documentation, and on-site technical assistance. Our after-sales network spans Europe, Southeast Asia, the Middle East, and 100+ additional markets.
You benefit from 17 years of accumulated expertise in farm planning, system integration, and poultry management consultation. This knowledge transfer accelerates your operation's learning curve and maximizes return on investment.
Frequently Asked Questions
Q: What distinguishes A-type from H-type layer cage systems?
A: A-type cages feature ladder-shaped configurations that facilitate natural ventilation and reduce initial investment costs. H-type systems utilize vertical stacking for significantly higher bird density, requiring full automation but delivering superior space utilization.
Q: How does cage design achieve less than 0.3% egg breakage?
A: The 7-degree floor slope works with cushioned egg-receiving trays to ensure eggs roll gently away from laying hens immediately after production, eliminating impact damage and hen trampling.
Q: Which galvanization process suits high-humidity environments?
A: Hot-dip galvanization is essential for humid climates. The chemical bonding process creates a zinc layer that prevents corrosion for 15+ years, vastly outperforming cold galvanizing's mechanical adhesion in moisture exposure.
Q: What floor space does each bird receive?
A: Standard designs allocate 400-450 cm² per bird, complying with international poultry welfare guidelines. This spacing minimizes stress while optimizing egg production quality and flock health.
Q: Can feeding systems be customized for specific nutritional programs?
A: Yes. Cage installations accommodate either traveling hopper feeders or chain feeding systems depending on your required precision for nutrient distribution across different production phases.
Contact Huabang Smart Today
Transform your poultry operation with proven Chicken Cage For Layers Poultry Farming. Contact our technical team at admin@huabangsmart.com to discuss your specific requirements and receive a customized solution proposal.
