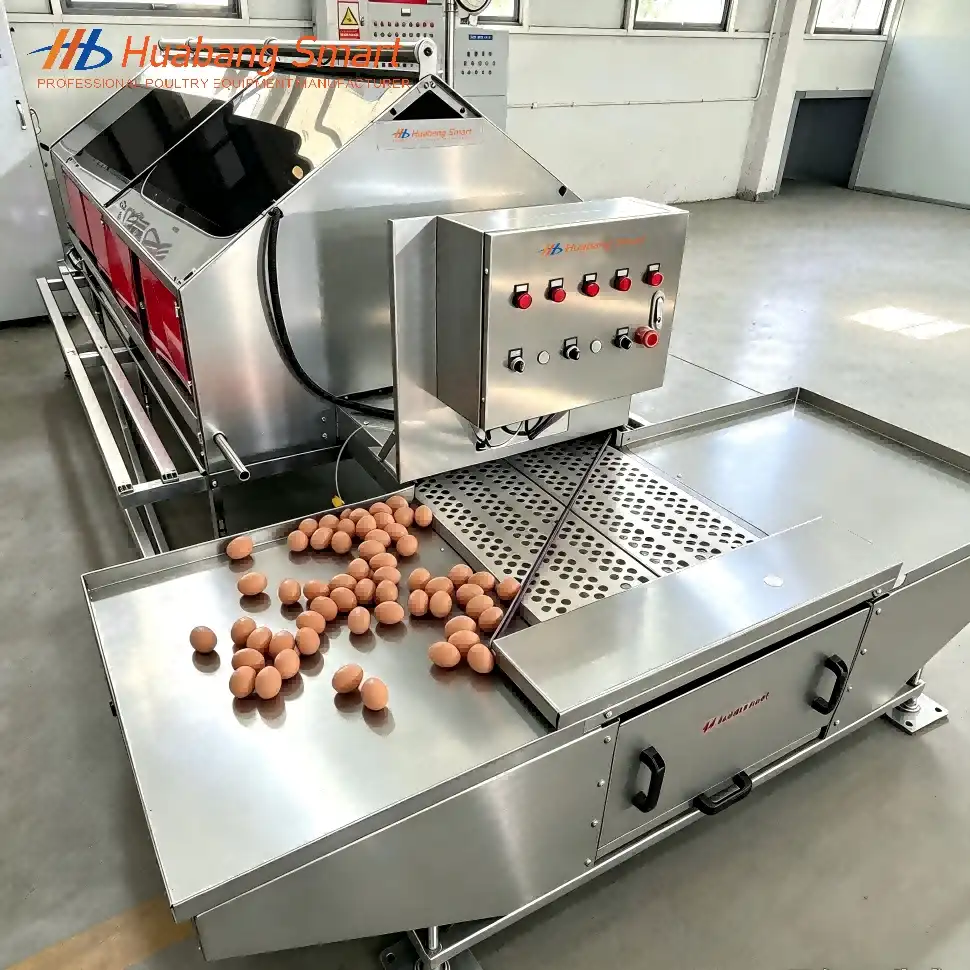

Automatic Egg Collection Nesting Box – Commercial Roll-Out Nest System for Low-Breakage Egg Farming

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. automatic egg collection nesting box targets at the requirement of commercial layer farms for constant and low-breakage egg output every day. The frame is made from zinc-aluminum-magnesium sheet, with a nest inclination of 8°, and a buffer egg-rolling structure, which keeps the breaking rate below 0.3%. Each unit has about 120 chickens and comes with a 1-year warranty. Huabang has been in the poultry equipment business since 2012 and that experience goes into every panel and weld on our nest box.

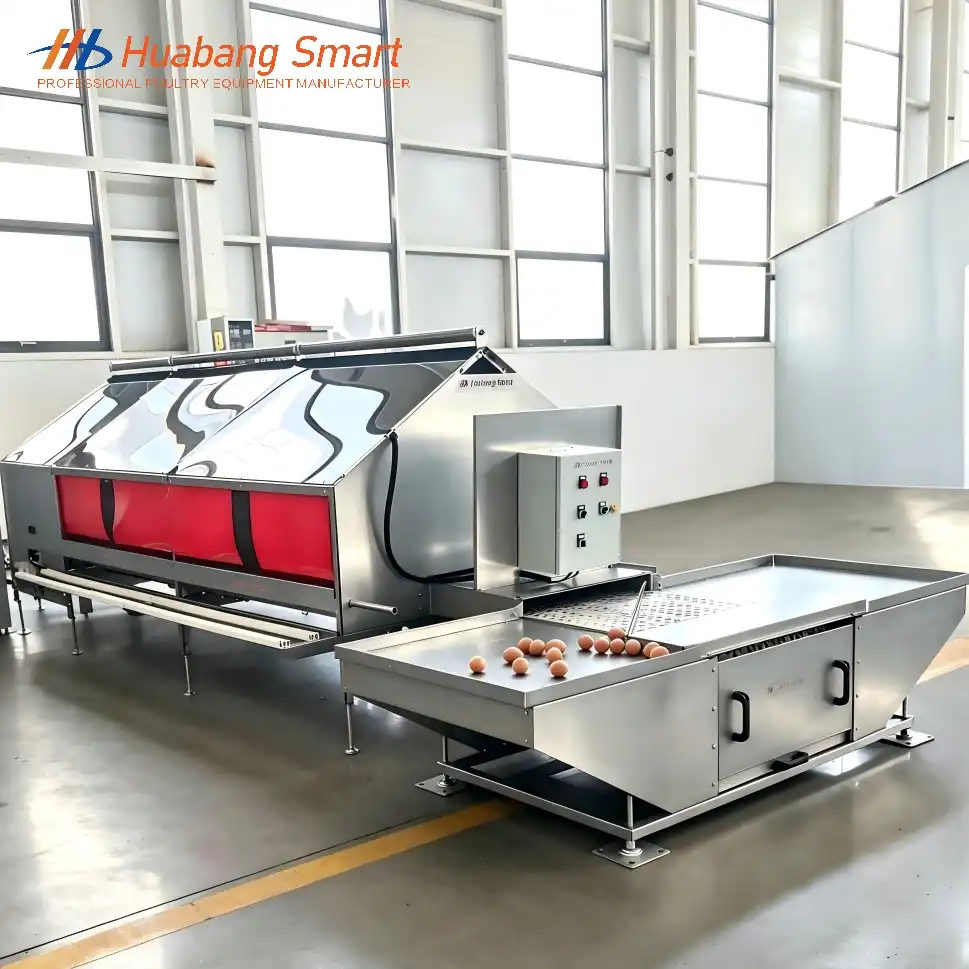

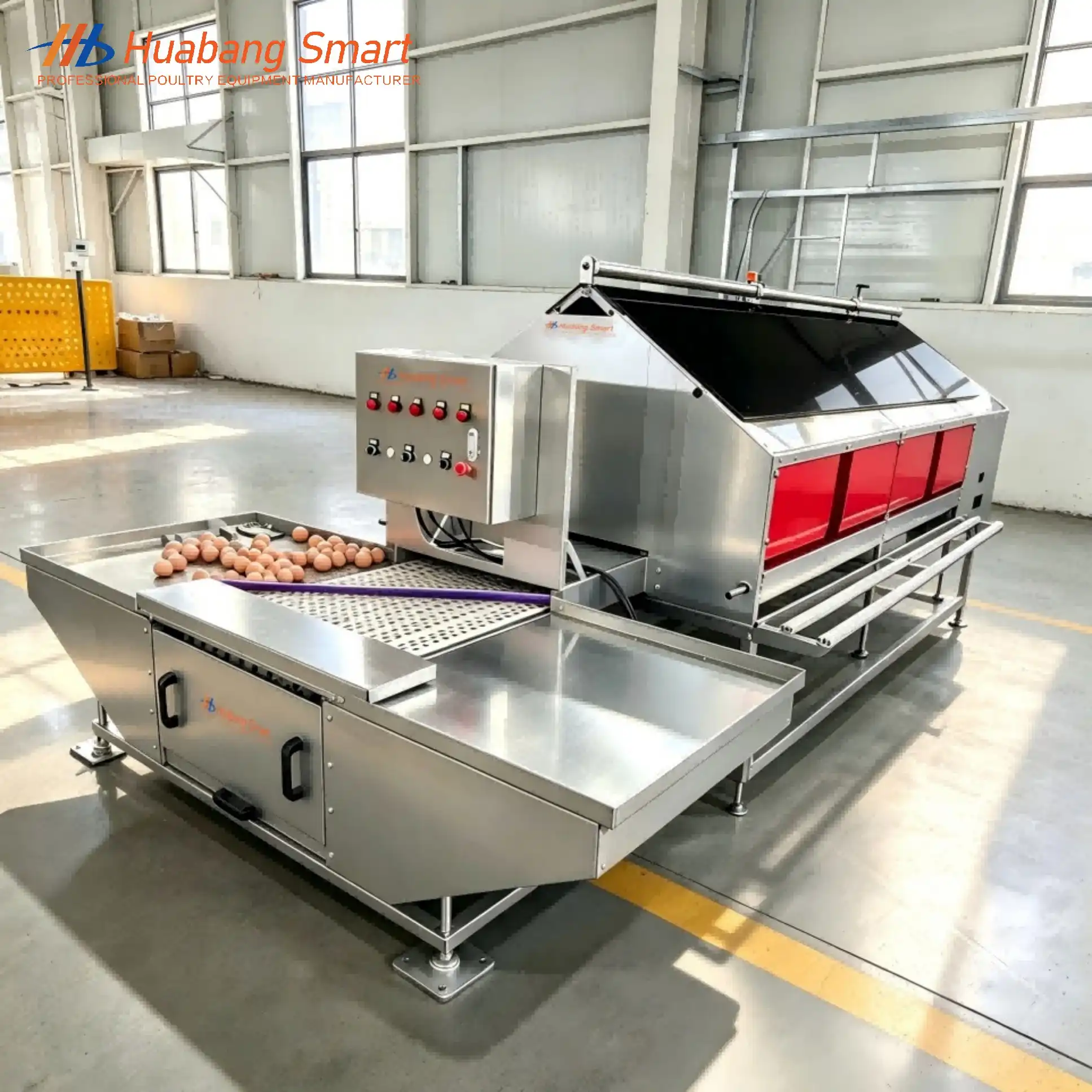

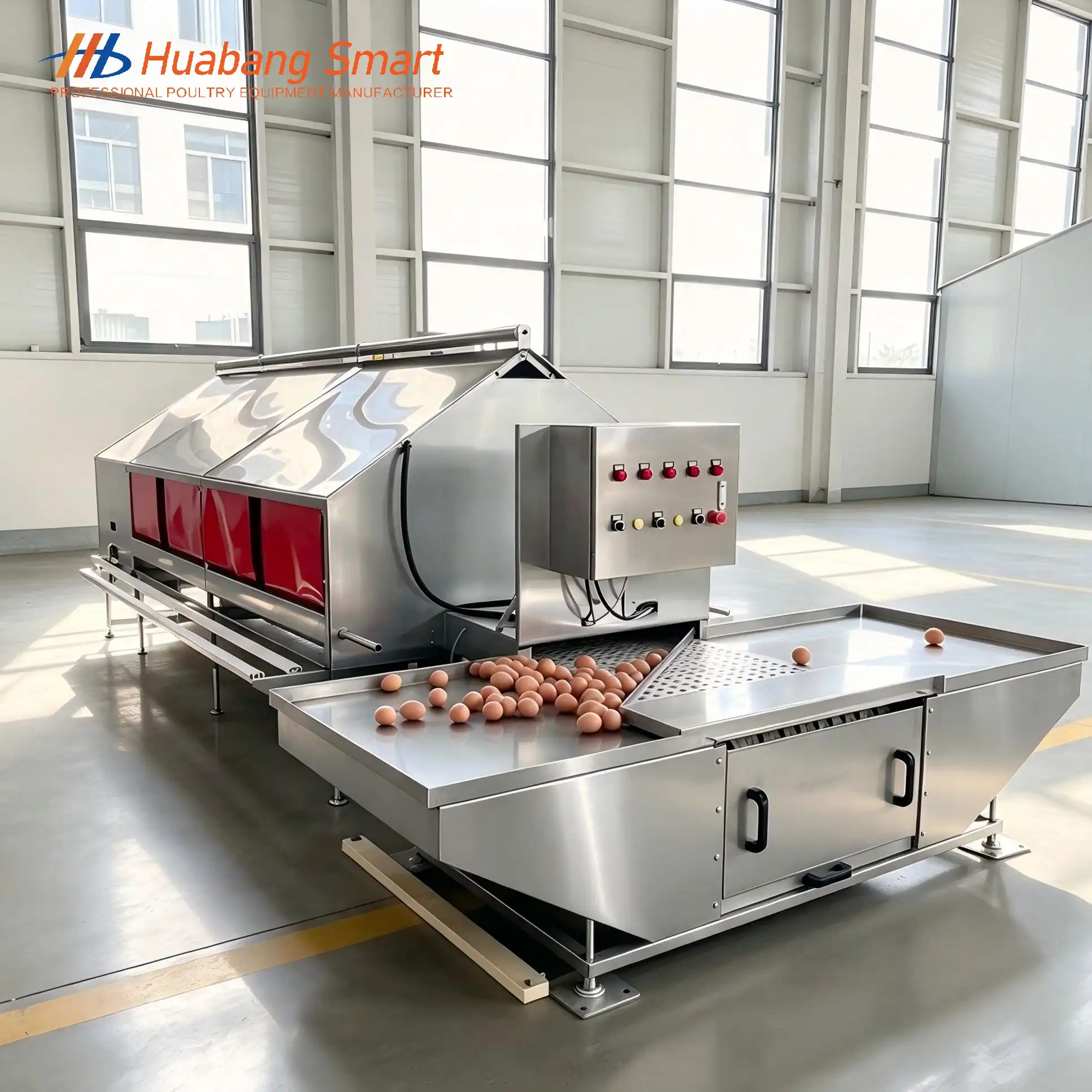

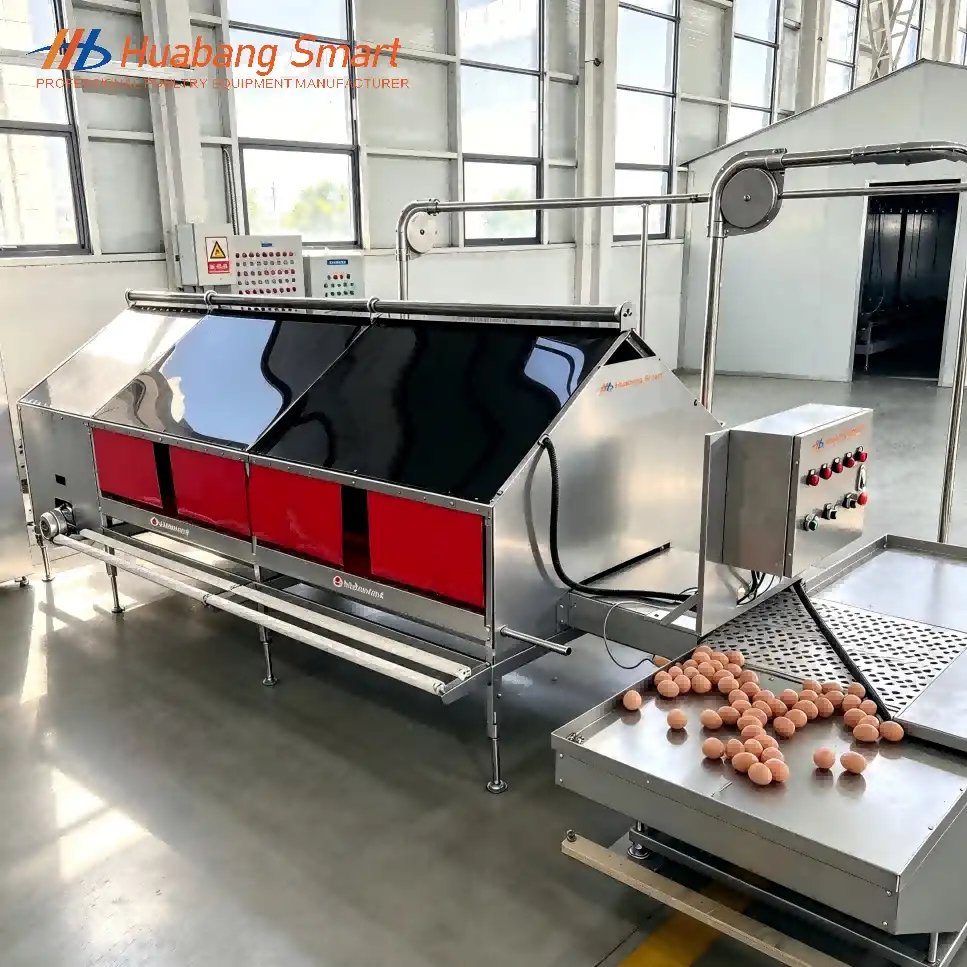

What Is This Automatic Egg Collection Nesting Box?

Shandong Huabang Agricultural and Animal Husbandry Machinery Co.,Ltd produced this nest box for commercial layer homes that demand continuous output without extra hands. The frame is made from zinc-aluminum-magnesium plate, chosen for its corrosion resistance in humid chicken houses. Each unit is 1.2m length by 1.4m broad (1.88m with the perch) and 2m high, perch included.

Nest has an 8° tilt angle so eggs slide out by themselves. One set is 40kg and will accommodate over 120 birds. The egg collection platform is 2.13m by 0.8m, with 0.776m bird passage per unit. Each set is covered by a 1 year warranty and is from a business who has been designing and manufacturing poultry equipment since 2012.

Key Features and Design Advantages

Ultra-Low Egg Breakage Rate

Each nest box has a buffer type anti-breakage rolling structure. The eggs aren’t quickly sliding or dropping, they are slowly rolling down an 8° inclination. Breakage remains below 0.3% with typical feed control and proper installation. “Without this buffer step you tend to see higher breakage and pecking damage in daily use.”

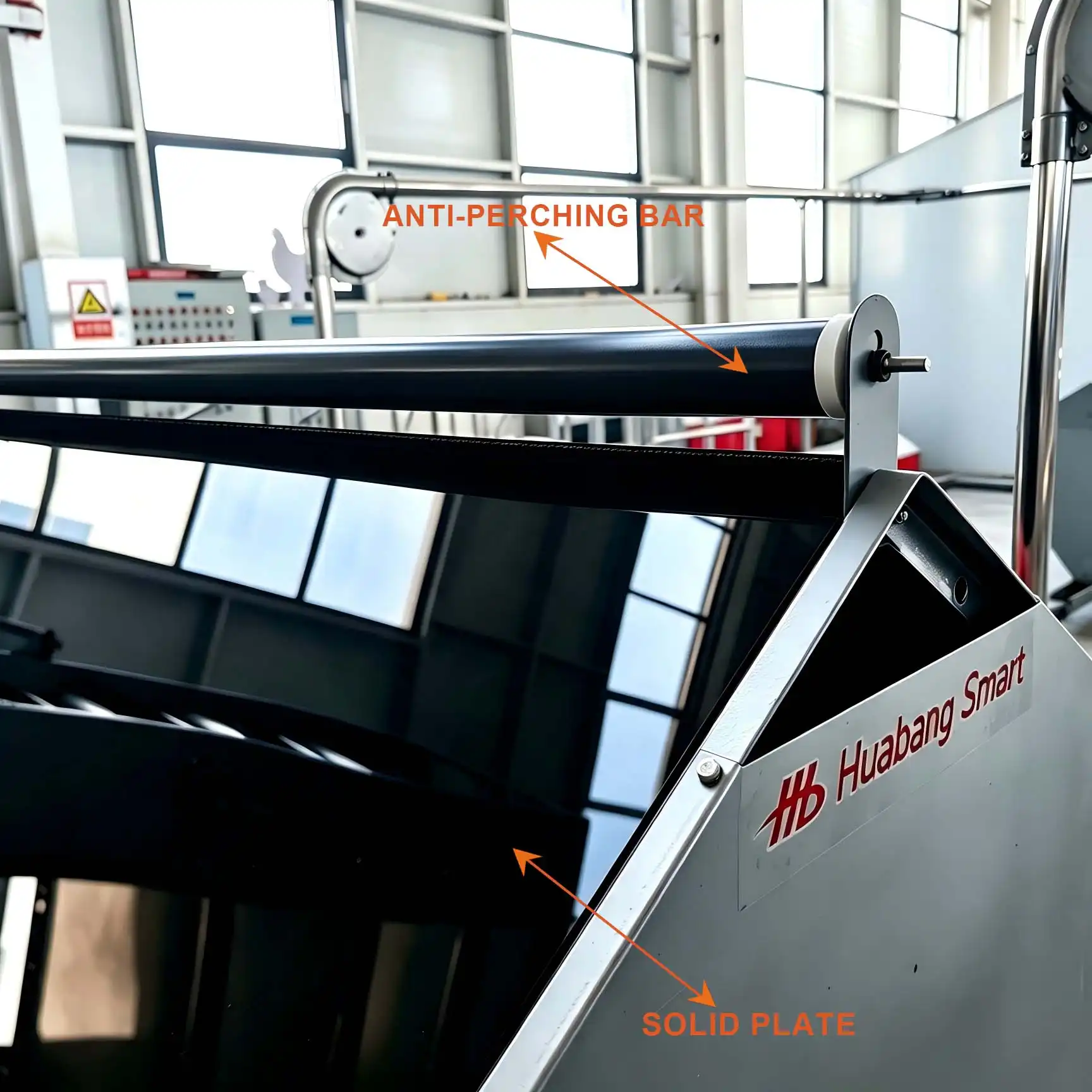

Smart Anti-Broody & Anti-Perching Design

It has a built in elevating mechanism which lifts the nest body itself at nite. This stops hens from roosting inside when it gets dark. This leads to cleaner eggs and less faecal build-up. Nest boxes without this lifting feature often require more frequent cleaning and egg washing.

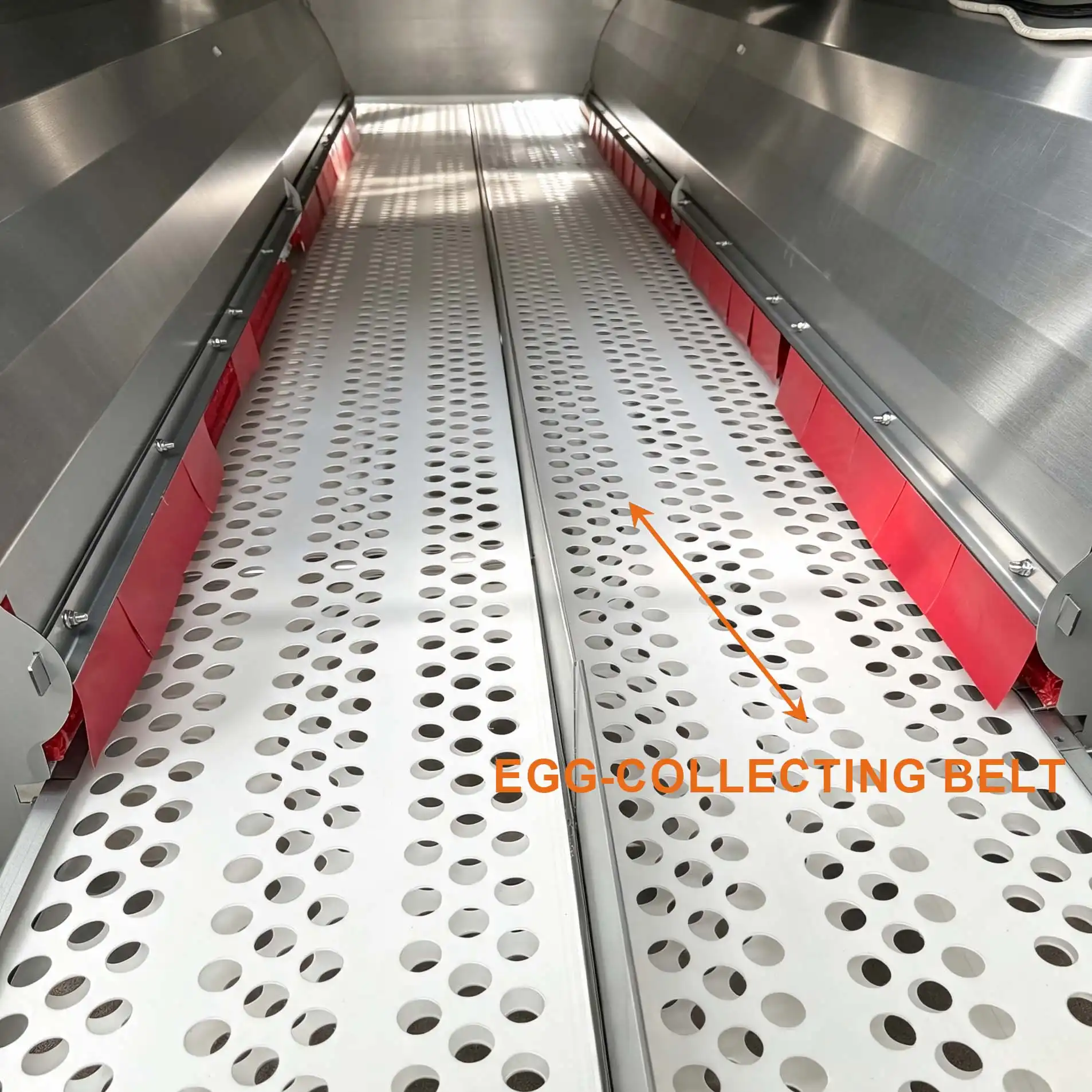

Self-Adjusting Conveyor Belt

The back end of the egg belt supports real-time tension adjustment, deviation correction automatically. This maintains the belt running straight during long shifts and reduces jams and sliding. Belts lacking this feature can wander off track over time and need more regular human adjustment.

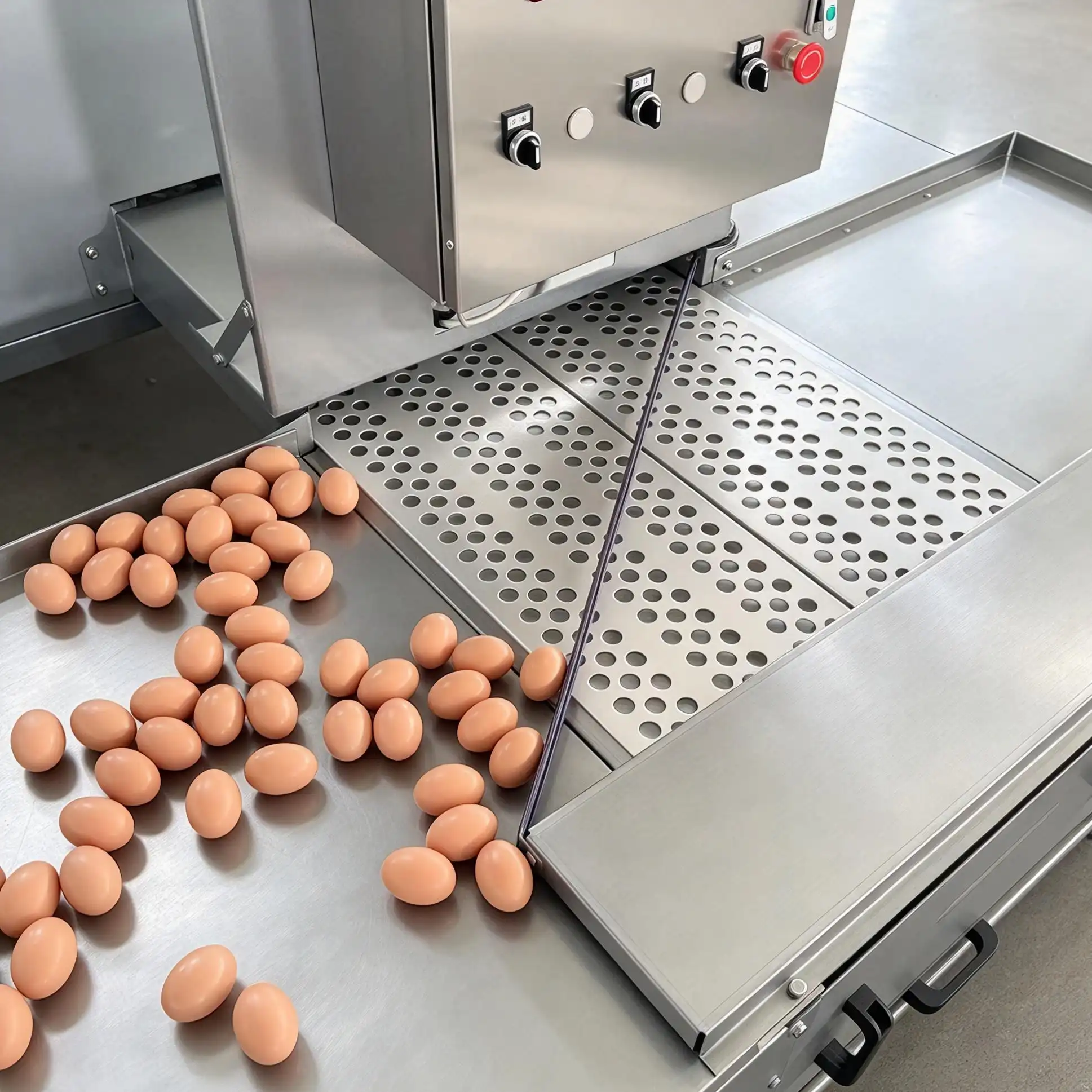

Modular Integrated Structure

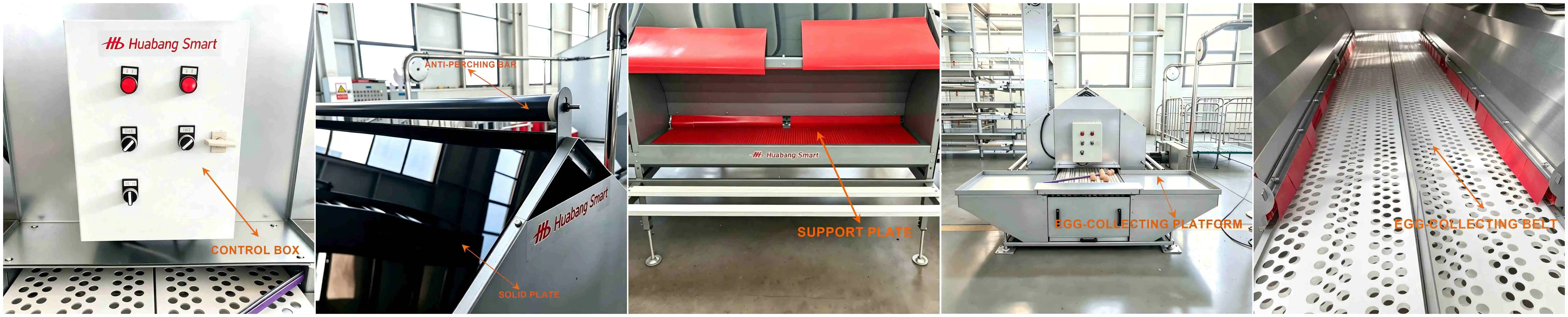

egg-collecting platform, laying nest, storage box, and conveyance tail structure are all combined into one unit. It hooks up to automatic egg collection lines without any more adapters. This suits large-scale standardised hen homes and facilitates comprehensive project matching of Huabang’s team.

Labour Savings / Long-Term Returns

The whole house's egg-picking chore is taken over by this automatic egg collection nesting box. Farms trim labour hours and safeguard egg quality and experience steadier yield cycle after cycle. In commercial layer operations this translates to real savings year on year.

Technical Specifications

Installation, Support, and Maintenance

For each order, Huabang will provide site planning, system design and full configuration list. Your crew will be guided through every step using the video installation guide. If needed, we can also provide installation support on-site. Oversea after-sale service will follow you all through the warranty duration.

The egg belt requires some easy checks also. Check every day that the belt joints are tight, the tension is maintained without overstretching and the clips or hooks are not damaged. Check tensioning spring weekly and clean belt surface from dust or feathers. These quick checks help keep your product working with less breakdowns and less down time.

Applications: Who This Nesting Box Fits?

This nest box is also ideal for commercial laying hen homes, and breeder hen operations on large-scale farms. It also works for smaller backyard installations when owners want cleaner eggs without continual human picking. The automatic egg collection nesting box can be adapted to varied lengths of hen house layouts as the number of units can be increased or decreased depending on your floor plan.

Customization and OEM/ODM Options

Huabang increases nest unit numbers based on your chicken house length and bird count. OEM and ODM services are supported, with designs built from client drawings and farm requirements. Standard production runs 30 to 60 days per order, so you can plan your installation timeline ahead of flock placement.

Why Choose Huabang?

Shandong Huabang has an ISO9001 and CE certified manufacturing system. Beyond the zinc-aluminum-magnesium frame of this nest box, the company’s wider array of livestock equipment features robust hot-dip galvanised steel frameworks built for longevity in and out. Ships production to more than 100 countries, including Europe, Southeast Asia and the Middle East. Factory direct price means you receive speedy delivery and after sales support from the same team that created your system.

FAQ

Q: What kind of chickens is this automatic chicken nest box suitable for?

A: It fits commercial laying hens, and it also works well for breeder hens in large-scale poultry farms.

Q: Can we customize the quantity or size according to our chicken house?

A: Yes. Huabang can raise the number of nest units and adjust the layout based on your chicken house length.

Q: Do you supply technical support for installation and commissioning?

A: Yes, Huabang's technicians offer technical guidance and support for installation and setup.

Q: What is the egg breakage rate of this roll-out nesting box?

A: Breakage stays below 0.3% under standard installation and normal feeding management.

Q: Can this product be used on small or backyard farms?

A: Yes, the unit count simply scales down to fit smaller setups alongside large commercial houses.

Q: How is the nesting box packed for shipping?

A: Each set ships in a plywood case, built to protect the frame and belt parts during transport.

Contact Us

Ready to upgrade your layer house with an automatic egg collection nesting box? Email ginny260831@gmail.com for pricing, specs, and layout support today.
