Poultry Laying Nest Box for Commercial Egg Farms: Automatic Collection with Low Breakage Rate

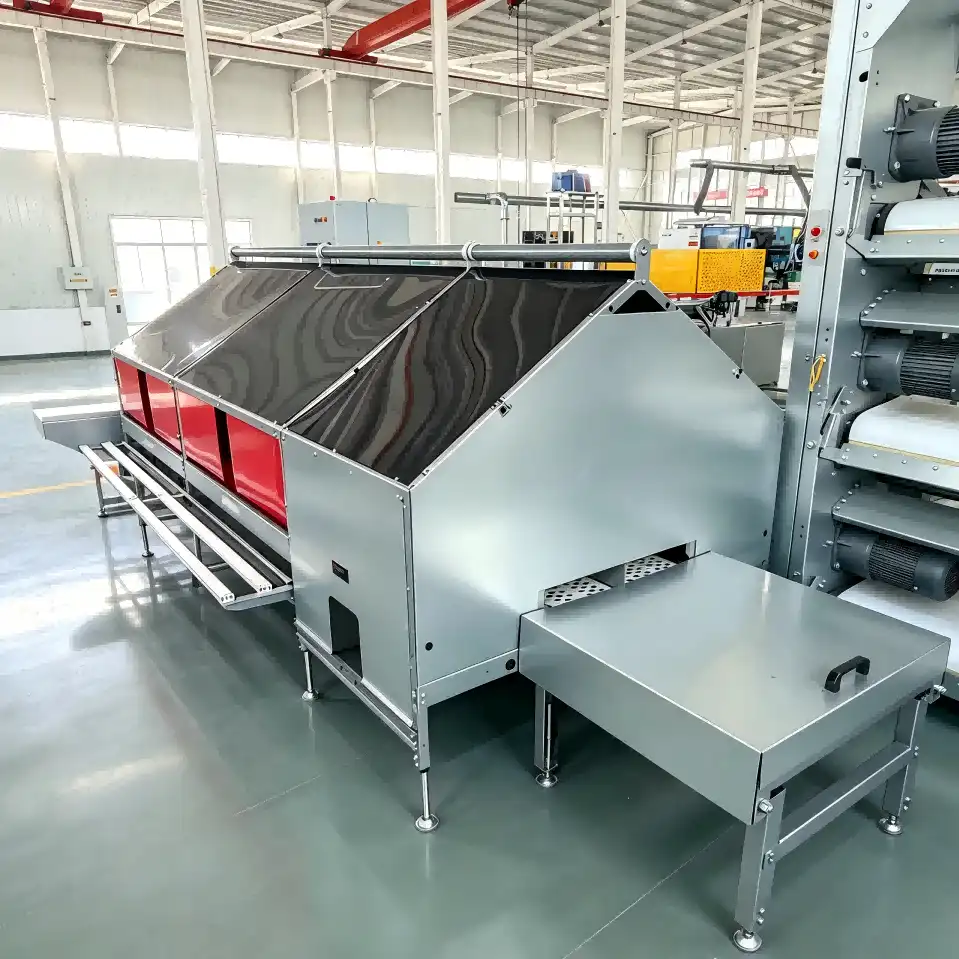

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. creates and manufactures the poultry laying nest box used in commercial and private henhouses around the world. The unit is made from a zinc-aluminium-magnesium plate and is 1.2m long, 1.4m broad (1.88m with the perch extended) and 2m high (with the perch). The unit can house about 120 hens per pair. The egg-collection belt is driven by a front motor (0.4 kW) and a rear motor (0.75 kW) and egg breakage is kept below 0.3%. They are 40kg/set, covered by 1 year warranty, manufactured under ISO9001 and CE certification.

About Huabang Smart

Shandong Huabang Agricultural and Animal Husbandry Machinery Co., Ltd. has 17 years of experience in designing poultry housing equipment. The company is a supplier to poultry farms in more than 100 countries in Europe, Southeast Asia and the Middle East and production is carried out under ISO9001 and CE approved processes.

What This Poultry Laying Nest Box Is Built For?

This mechanical chicken nest box is developed for egg gathering without ongoing physical labour. It substitutes hand-picking with a belt system that gently takes eggs out of the nest.

The frame is made from a zinc-aluminium-magnesium plate, a corrosion-resistant material that can cope with humid barn conditions. The imported PP perforated egg belt + elastic nest mat together protect eggs during the journey.

Hens enter at an 8° nest tilt angle, allowing eggs to roll out naturally without rough handling. The angle is designed on purpose to balance the hen’s comfort with the egg’s smooth flow.

Material and Structural Design

The nest body is mounted on a zincalumag plate construction, which provides long-term resistance to rust and manure. This material option is good for a longer service life than normal coated steel.

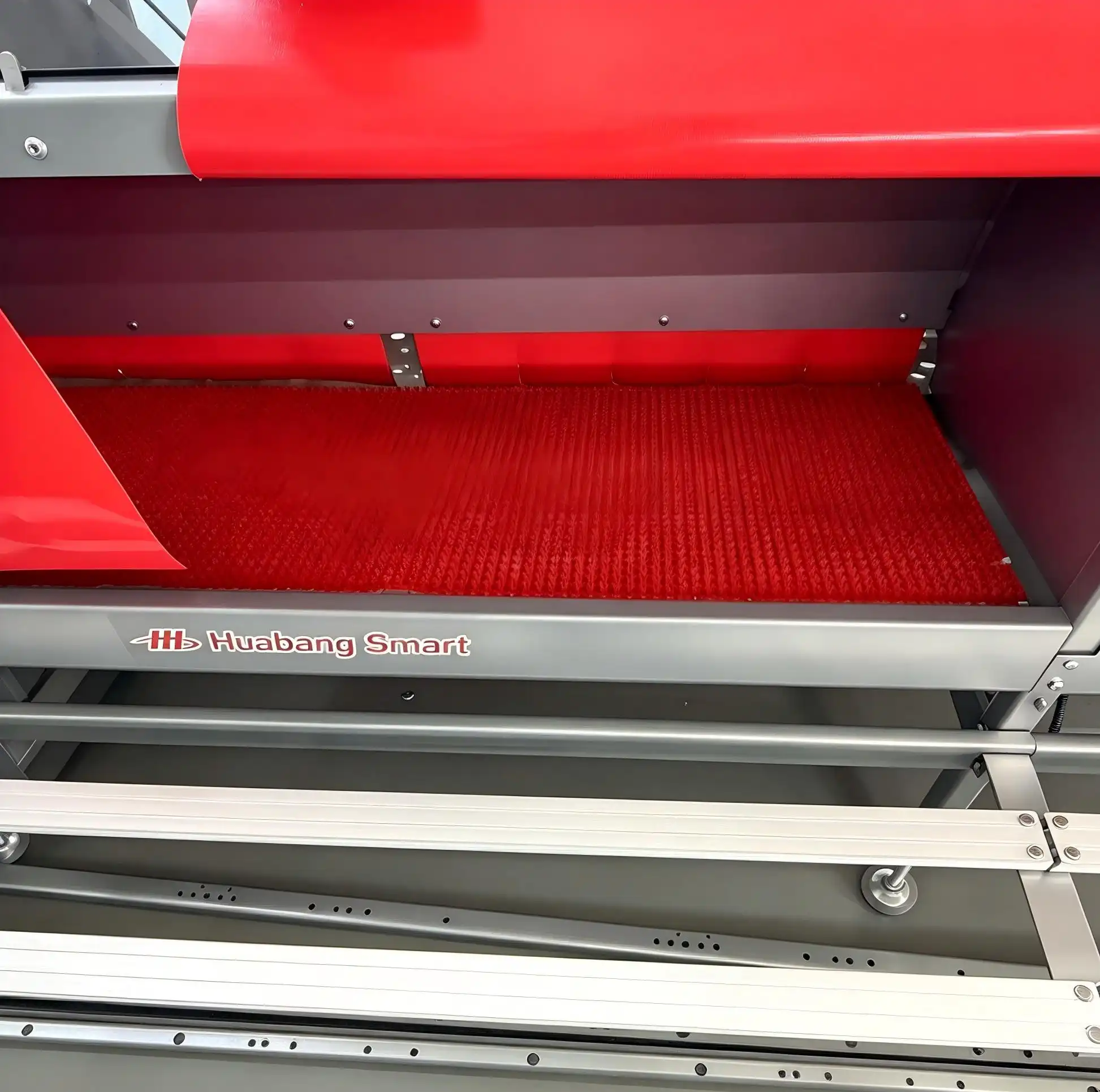

The elastic pad within the nest decreases stress when hens are preparing to lay and the PP perforated belt directs eggs along a stable route to the collection point.

Two motors drive the belt system from the front and rear, rated at 0.4 kW and 0.75 kW, respectively. The dual motor design allows for consistent tension throughout longer rows of nest pieces.

Specifications

Key Advantages

The buffer anti-breaking structure softly rolls eggs onto the belt, helping to limit breakage below 0.3%.

The smart anti-broody raising mechanism will automatically elevate the nest body at nite to prevent hens from nesting overnight and keep eggs clean.

It operates at the back and automatically changes the egg belt tension and corrects deviation. This reduces slippage and jamming and obviates the need for human calibration.

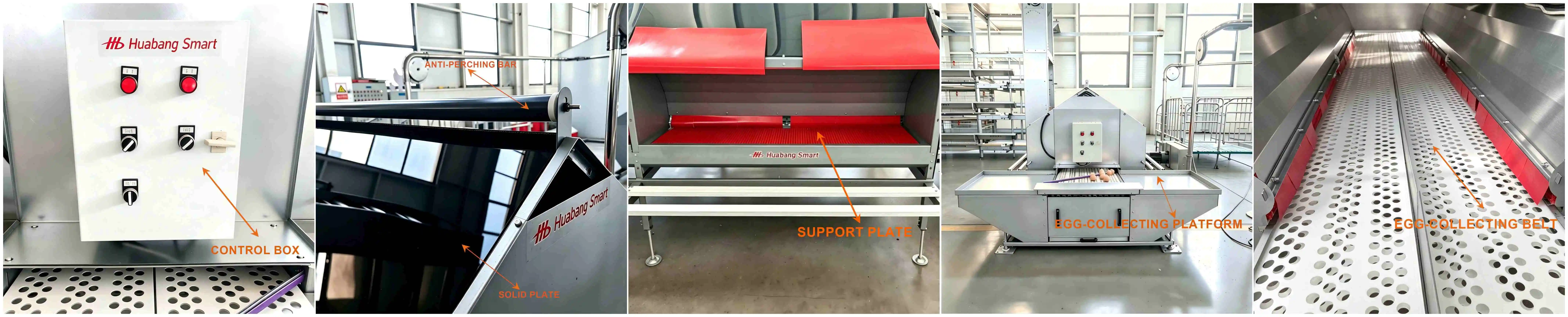

The egg-collecting platform, laying nest, the storage box and transporting tail are merged. This enables the poultry laying nest box to interface directly to automatic egg collection lines in large commercial buildings.

Switching from manual egg picking to automatic collection helps to minimise labour expenses and reduce the daily workload in the laying house.

Applications

This product is developed for commercial laying hen houses that must accommodate large numbers of hens with fewer personnel. It also works well for breeder hen facilities where hatch rates are affected by egg hygiene.

The same equipment can also be used for smaller backyard and family scale setups. Modular architecture can scale up or down depending on size of flock.

The nest box can be easily integrated into the current conveying system if the hen house is equipped with automatic egg collection lines. This simplifies planning for new or expanding poultry farms.

Customization and Support Services

Huabang Smart may customise the number of nest units according to your chicken house length. This implies that layouts can be designed around your existing barn structure, rather than forcing a conventional size.

We offer OEM and ODM service, and will develop the products according to the client's drawings and needs. 30 to 60 days from receipt of order confirmation is standard production.

Support doesn’t end with delivery. The team provides site planning, system design, configuration list, video installation advice, on-site installation assistance when needed, foreign after-sales service.

​​​​​​​

Quality Standards

It is produced in ISO9001 and CE certified methods. Each poultry laying nest box set is tested for belt tension, motor function and breakage performance before shipment, in line with the 0.3% breakage target in the specification sheet.

FAQ

Q: What sorts of chickens are this automatic chicken nest box good for?

A: It is typically used for commercial laying hens and can also be used for breeder hens in large-scale poultry breeding farms.

Q: Can we customize the quantity or size according to our chicken house?

A: Sure. Depending on the exact length of your chicken house, the number of nest units and the layout can be altered accordingly.

Q: Do you provide technical support for installation and commissioning?

A: Yes, there is technical guidance and help from expert technicians in the installation.

Q: What is the egg breakage rate on this product?

A: The egg breakage rate is kept within 0.3% under routine feeding management and standard installation.

Q: Is this product suitable for backyard farming and small farms?

A: It is suitable both for commercial poultry farms and for small backyard breeding.

Q: Is there some way to deter the chickens from roosting in the nest box?

A: Yes, the smart anti-broody lifting mechanism lifts the nest body at nite keeping eggs clean and hens out of the nest after laying hours.

Contact Us

Ready to upgrade your hen house with a reliable poultry laying nest box? Contact our team at admin@huabangsmart.com for pricing, layout planning, and installation support tailored to your farm size.
