anti egg pecking nesting box

Anti Egg Pecking Nesting Box: Automatic Roll-Away Layer Nest for Commercial Hen Houses with Buffer-Guarded Egg Rolling

Collecting the eggs by hand every day is a lot of work, and frequently the shells are cracked or pecked before they reach the pack table. This anti egg pecking nesting box is an automatic roll-away laying nest for commercial layer and breeder homes, transferring each egg out of beak reach within seconds through a buffer-guarded channel. Made of zinc-aluminum-magnesium plate, each unit is 1.2 m long, 1.4 m broad and 2 m high with the perch. Each set can contain about 120 hens and is driven by 0.4 kW and 0.75 kW motors, weighing 40 kg in total.

Built by a Manufacturer With Over a Decade in Livestock Equipment

This roll-away laying nest is made by Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd., which has more than 10 years of design and production expertise of livestock equipment from Qingzhou, Shandong Province since 2012. The factory has an ISO9001 and CE certified manufacturing system and serves customers all throughout Europe, Southeast Asia and the Middle East. Frames are made from 3 mm hot-dip galvanised steel. The nest body is raised on a 5 cm elevated center structure allowing air to circulate underneath. OEM and ODM work is based on customer's drawings. Each order includes site planning, configuration list, video installation guidance and international after-sales service. The zinc-aluminum-magnesium plate shell has a service life of up to 15 years.

Production takes 30 to 60 days and the company sells factory direct with no layer of trading in between. The same workshop produces smart cage systems, mobile poultry homes, floor-rearing systems, feeding and watering lines and environmental controls, so that an order for a nest box can be matched to the rest of the house.

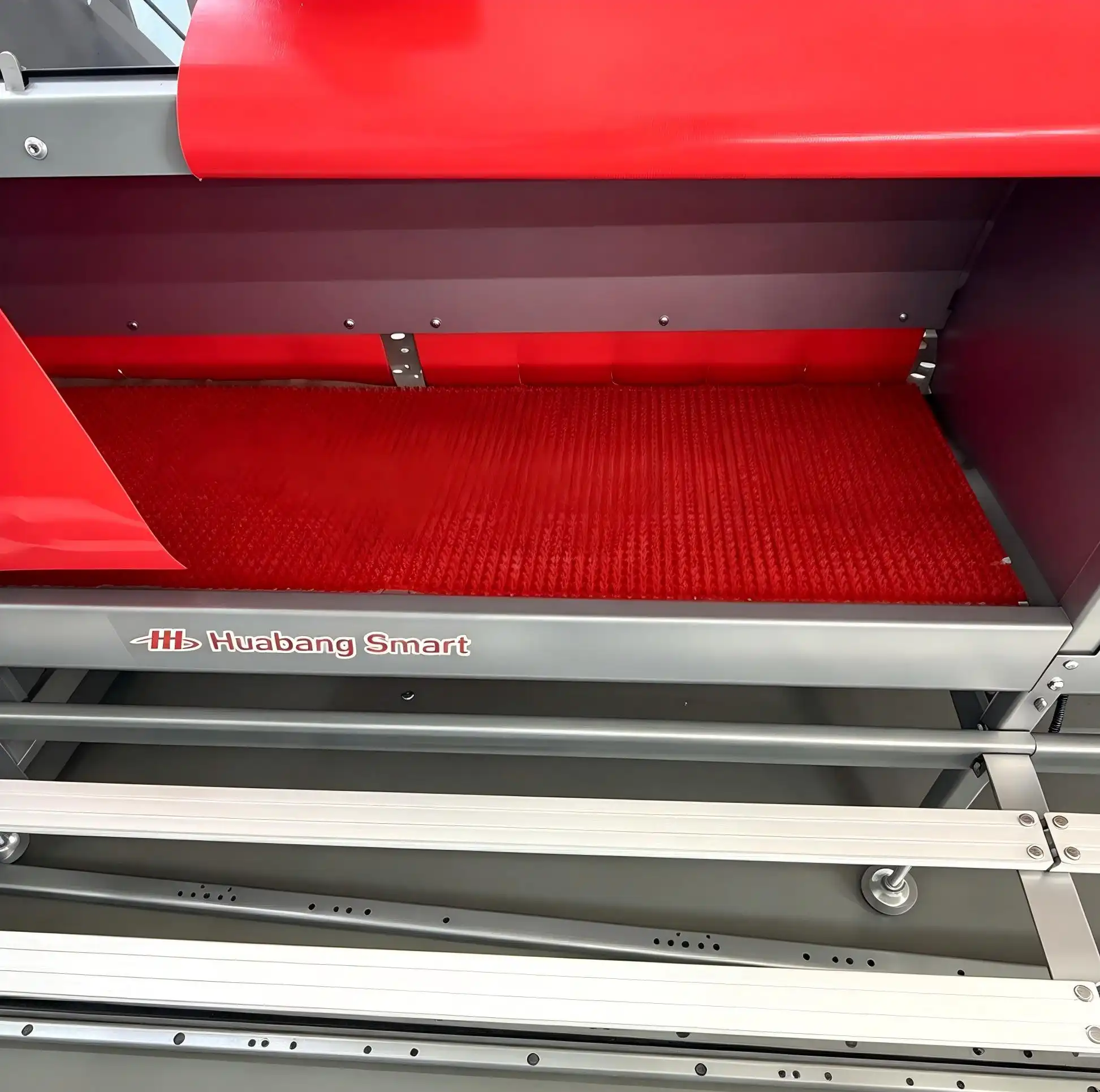

Buffer-Guarded Egg Rolling That Limits Cracks and Pecking

The eggs come out of the nest down a slanted, buffer-guarded path, not straight down onto a belt. The guard slows each egg before it lands, keeping shell impact low and breakage rates below 0.3% with regular installation and routine flock management. A hen that pecks back at her own egg finds it beyond her reach.

Basic nesting boxes marketed at the low-price point sometimes exclude this buffer layer, so their eggs strike the belt at full speed, and cracks and pecking damage rise once the flock learns the habit. The rolling geometry is optimised for the 1.2 m nest length, hence an egg rolls off the laying region in a few seconds.

Night Lifting Mechanism Keeps Hens Out of the Nest

This anti egg pecking nesting box combines its rolling channel with a nightly lift. An automatic anti-broody system lifts the nest body up at nite, preventing hens from settling down for the dark hours. This reduces broodiness, keeps excrement off the nesting surface and leaves shells cleaner upon collection. The body sinks down again before dawn light so the nest is open and dry when laying commences.

Traditional automatic nest boxes keep the nest in position at all times. When they arrive at the pickup table the eggs are soiled because the birds that roost inside defecate on the nesting litter. By lifting the body the queue in the morning at the nest entry is also shortened, because the laying space is empty when the lights come on.

Belt System With Live Tension and Automatic Deviation Correction

The back end of the egg belt has a real time tension adjuster and an automated deviation corrector. Belt tracking remains centred through long continuous shifts, so you halt the queue less often to re-align a belt that has walked to one side.

Competing units tend to slip, jam or drift and require manual calibration every several days. The adjustment travel here is generous, allowing a stretched belt to be re-tensioned without cutting it. The joints should be four-sided stitched and overlap at least 10 cm and the center of the driven roller is aligned with the center of the nest on the bottom wire.

Modular Build for One-Stop Line Matching

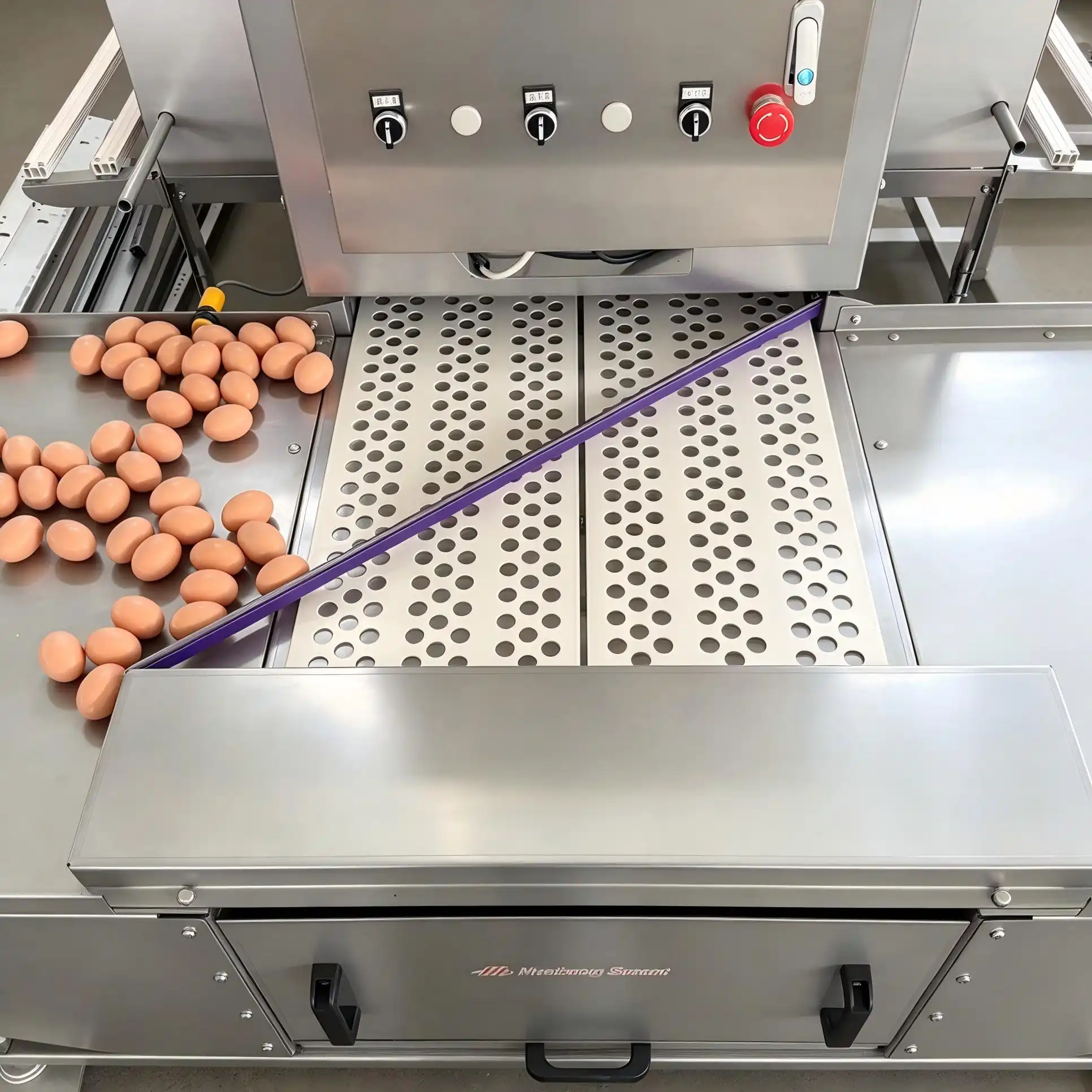

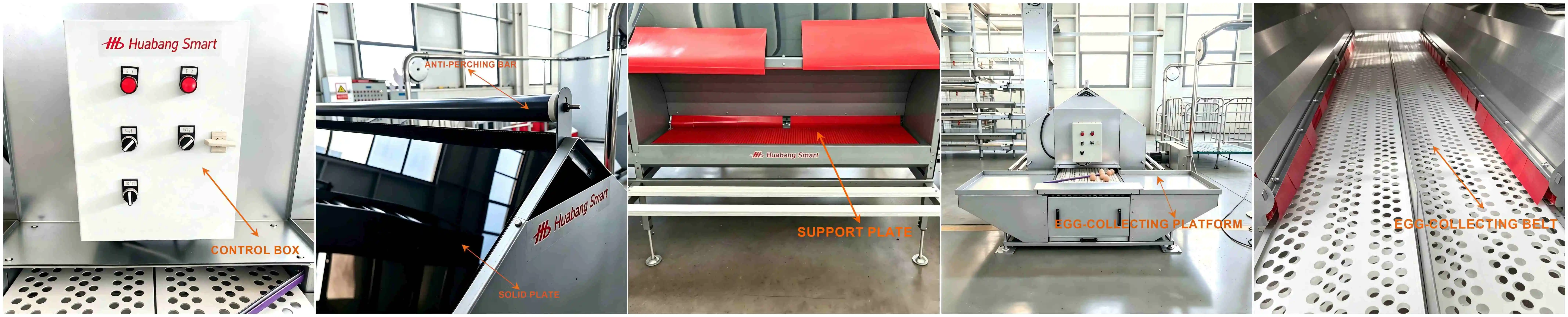

The egg collecting platform, laying nest, storage box and conveyance tail are delivered as one integrated item. This single frame fits into most automatic egg collection lines so this product may either be added to an existing conveyor arrangement or become the centrepiece of a new house design.

Unit bird passage is 0.776 m – this determines how many hens share each entrance and how spaced out rows are along the house. The perch increases the working width to 0.48 m. On a full build the same module is repeated throughout several house parts, it can be paired with sensors, counters and sorting devices at the collection end.

Anti Egg Pecking Nesting Box Specifications

Labor Savings and Running Costs

Automatic collection has replaced hand picking and the walk-and-gather round is the major block of daily labour on many farms. Moving eggs on a belt instead of by hand also eliminates handling steps that create dirty shells and cracks.

Small units begin at roughly $1,500, thus the economics are better at scale. A flock of less than 50 hens seldom pays for itself, but a multi-row house does. The two motors have minimal power draw, 0.4 kW on the front motor and 0.75 kW on the rear motor. Belts do stretch over time and bearings deteriorate, so plan for frequent inspection versus a fit-and-forget install.

Installation, Daily Checks and Technical Support

The sets weigh 40 kg each, and the frame needs to be kept level in the row, thus the installation requires electrical work and substantial structural attachment. Factory professionals offer technical support for setup and commissioning. Video assistance shows assembly step by step.

Daily checks are quick and cover belt joints for gaps, belt tension for over-stretching, clips and hooks for loss or damage. Test the tensioning spring weekly. Clean the cleaning brushes, and wipe feathers and dust from the surface of the belt. This keeps trash out of the egg channel and protects the weave in the belt when you pressure wash.

Custom Sizing for Your House Length

Nest count and layout match the actual length of your chicken coop, not forcing a standard row. The home drawing is submitted, and the team sends a config list with the location of the units, the routing of the conveyor and the number of sets necessary.

OEM and ODM orders are based on clients' drawings. The coating of the zinc-aluminum-magnesium plate is resistant to humid air with ammonia. The item is covered by one year guarantee and overseas after-sales assistance accompanies the shipping. Compare the buffer guard, the lifting mechanism and the belt corrector against a bare frame. Compare prices for an anti egg pecking nesting box.

FAQ

Q: What kind of chickens is this product suitable for?

A: Mainly for commercial laying hens, but also suitable for breeder hens on large scale chicken farms.

Q: Can we customize the quantity or size according to our chicken house?

A: Yes. Nest units and layout modify to your real house length.

Q: Do you offer technical support on installation and commissioning?

A: Yes. Factory personnel provide technical guidance and support during installation and commissioning.

Q: How often do eggs break in this nesting box that rolls out?

A: 0.3% or less under typical feeding management for normal installation.

Q: Can this product be utilised in backyard farming and small farms?

A: Appropriate for commercial farms and small backyard breeders. The payback is faster with higher flock sizes.

Q: How long does it last? What maintenance does it need?

A: Designed for up to 15 years, with daily and weekly checks of belt tension, joints, clips and brushes.

Contact Us

Do you have more questions about anti egg pecking nesting boxes? Send your house drawing and flock size to get a configuration list and quote.

Email: huabangsmart002@gmail.com
