chicken coop nesting box

Chicken Coop Nesting Box for Commercial Poultry Farms: Automatic Egg Collection with Low Breakage Rate

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. is engaged in the manufacturing and designing of an automatic chicken coop nesting box for commercial layer farms. The nesting box is made of zinc-aluminum-magnesium plate, and is 1.2m long, 1.4m wide, and 2m high with the perch. Each box can contain about 120 birds, and the egg breakage rate is less than 0.3%. The design is suitable for large scale hen houses directly connected to automatic egg collection lines. The construction, the motor and the conveying belt are covered by a 1 year warranty.

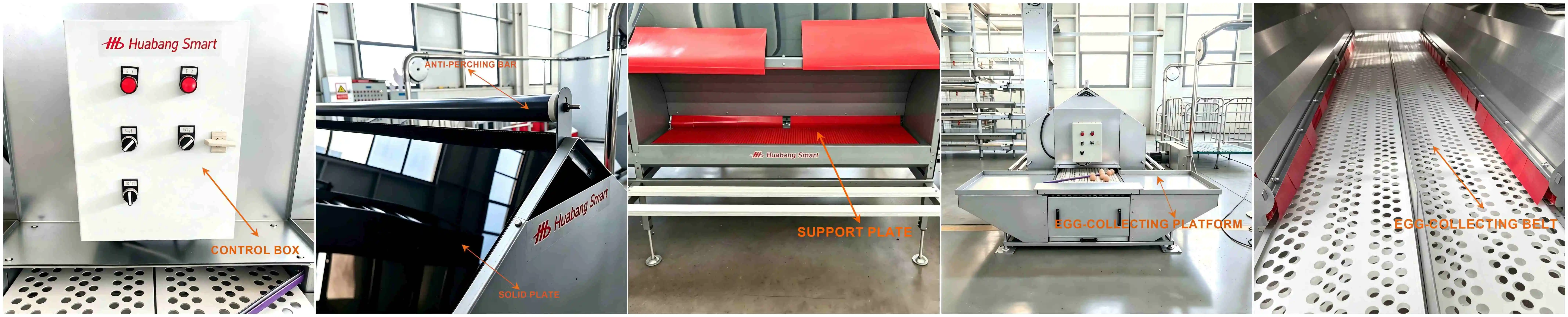

Nesting Box Design and Build

This product is made with zinc-aluminum-magnesium plate frame for corrosion resistance and long-term use. Each unit weighs 40kg and has a bird passage width of 0.776m, which enables hens to come through easily without crowding. The egg conveyor belt is composed of PP polypropylene which is chosen for its smooth surface and resistance to wear. The construction has a raised central design of 5cm to allow better ventilation under the nest and to keep the bedding area dry. The 3mm thick hot-dip galvanised steel frame provides extra strength against daily mechanical stress, which helps to assure reliable functioning in hot and humid chicken buildings.

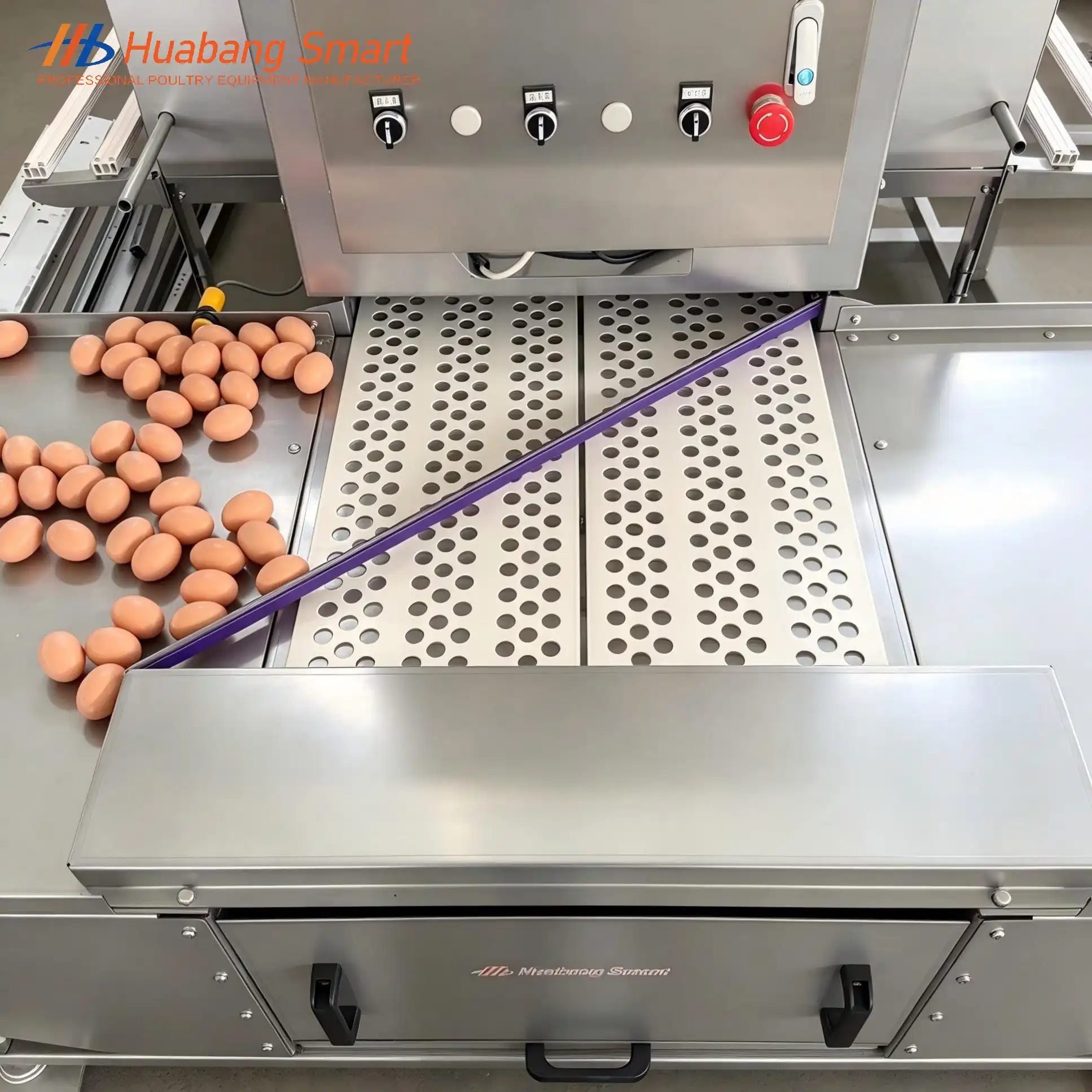

How the Automatic Egg Collection Works?

A buffer structure rolls the eggs on the conveyor belt. This anti-breakage rolling design slows down each egg before it reaches the conveyor belt. Egg breakage under proper feeding management is less than 0.3%. The smart anti-broody lift system mechanically lifts the nest body at nite to prevent the hens from roosting in the nest at nite. Fewer chickens roosting in the nest means less faecal contact with eggs and cleaner shells in the morning. And by self-tensioning and correcting the deviation while running, the rear part of the egg belt reduces slippage and jamming, while also decreasing the amount of time farms spend on manual calibration and belt repairs.

Chicken Coop Nesting Box Specifications

Applications

In commercial laying hen houses and breeder hen farms, this chicken coop nesting box works effectively. Large standardised hen houses can connect several units to a single automatic egg collection line, and the modular design also works for smaller backyard installations that still demand automatic egg handling. For farms with lengthy production rows, the integrated platform integrates the laying nest, storage box and conveying tail into one unit, reducing the installation time when matching numerous nest rows on a long chicken house.

Customization and Project Support

Huabang changes the number of nest units dependent on the length of your chicken house, so longer houses can add rows without modifying the belt design. All orders come with installation drawings, so your crew understands where to set everything before the equipment even arrives. OEM and ODM orders are made according to customer drawings and farm requirements. Huabang also provides site planning, system design and extensive configuration lists for the whole egg collection line, with video installation instruction and on-site support for abroad orders, besides the nesting box.

Quality and Manufacturing

The manufacture is done in an ISO9001 and CE certified manufacturing facility and the usual production cycle is between 30 to 60 days, depending on the size of the order and the level of customisation. Prices are kept near to cost of manufacture and delivery periods are kept short via direct factory supply. Huabang, with 17 years’ expertise in design and manufacture of poultry equipment, has exported autonomous chicken nest box units and related smart farming systems to customers in more than 100 countries, including farms in Europe, Southeast Asia and the Middle East.

​​​​​​​

Why Farms Choose This Nesting Box?

The major reasons commercial layer operations use this setup is lower egg breakage, cleaner eggs, and fewer manual labour. Replacing hand-picked collecting with automatic conveyance saves labour hours per day in a full chicken house. For farms increasing up production, this chicken coop nesting box is a practical approach to keep egg quality steady as the flock grows.

FAQ

Q: What kind of chickens is this product suitable for?

A: It is mainly produced for commercial laying hens, and also suitable for breeder hens in large-scale chicken breeding farms.

Q: Can we choose the quantity or sizes based on our chicken house?

A: Yeah. Huabang can increase the number of nest units and alter the arrangement according to the real length of your chicken coop.

Q: Do you provide installation and commissioning technical support?

A: Yes, the professionals of Huabang will provide assistance and support for you, including installation drawings and video instructions.

Q: What is the egg breakage rate for this roll-out nesting box?

A: Under conventional installation and typical feeding management, the egg breakage rate is controlled to be less than 0.3%.

Q: Is this product suitable for backyard farming and small farms?

A: It is useful for commercial poultry farms and modest backyard breeding.

Q: What does the 1 year warranty cover?

A: In normal operation the warranty covers the nest structure, the front and rear motors and the conveying belt system.

Contact Us

Need pricing, drawings, or installation support for your chicken house with a chicken coop nesting box? Contact Huabang at admin@huabangsmart.com for a quote and project guidance on your nesting setup.
