Auto Egg Collecting Nest Box for Commercial Layer Farms – Lower Breakage, Higher Output

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. Layer house equipment, constant output, clean eggs. The auto egg collecting nest box is 1.2m long, 1.4m broad (1.88m with perch) and 2m high including the perch, and it has a frame of zinc-aluminum-magnesium plate. Each unit houses roughly 120 birds, with egg breakage around 0.3%. It is driven by a front 0.4kW motor and a rear 0.75kW motor. The set is 40kg in weight and includes a 1-year warranty. Eggs roll out easily with an 8° tilt angle, minimising cracks and manual handling on your farm.

What Is an Auto Egg Collecting Nest Box?

A mechanised laying mechanism called an auto egg collecting nest box removes eggs from hens as soon as they are laid. It is one frame integrated nest bed, conveyor belt and storage platform. The hens lay their eggs on a slanted floor and the eggs roll onto the belt without being stepped or pecked on.

Eggs are handled in much the same way on belt-type egg conveyors throughout the poultry industry: they go down a slight incline, which helps to reduce damage. Huabang adds a buffer anti-breakage structure at the rolling point, to reduce hairline cracks before the eggs reach the belt.

Key Features of the Auto Egg Collecting Nest Box

The nest floor is of a buffer anti-breakage rolling structure, so the eggs slow down naturally when moving, rather than falling into harsh surfaces. Basic nest boxes without this buffer protection tend to have greater breakage rates in normal operation.

The nest body is lifted at nite by a built-in anti-broody raising mechanism, preventing hens from resting in the nest box after laying hours. Less nocturnal roosting means less faecal contact with eggs and cleaner shells.

automated self-adjusting tensioning system at the rear end of the conveying belt for automated compensation of deviations during long operating runs, thus decreasing belt slips, jams and manual calibration work.

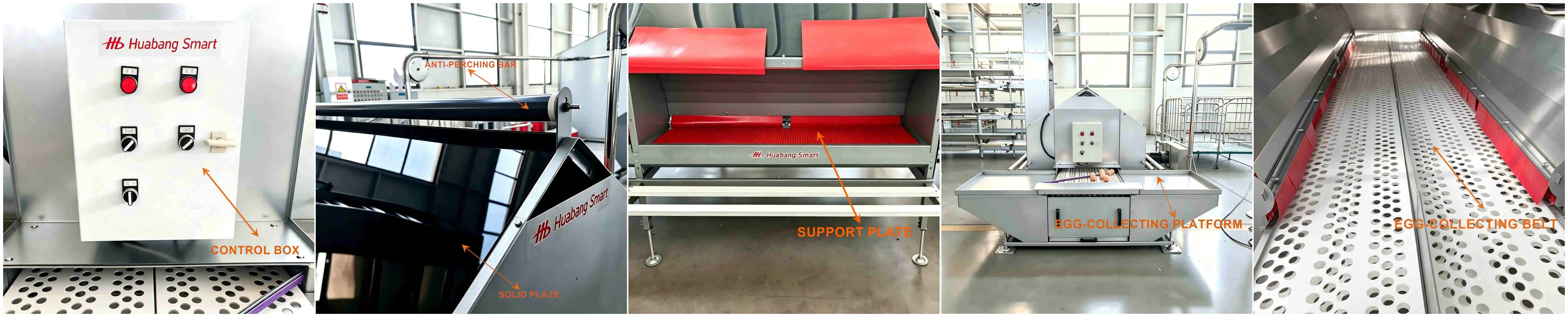

The nest bed, egg platform, storage box and tail structure all form one modular element, which means the nest box can be directly connected to mechanised egg collection lines. It is suitable for large-scale standardised chicken farms to provide one-stop project matching.

Technical Specifications

Why Farms Choose Huabang's Nest Box System?

Huabang has been designing and manufacturing intelligent livestock equipment since 2012. The company has an ISO9001 and CE recognised production system, and each batch goes through a documented quality process before leaving the plant.

Standard production time is 30 to 60 days per order. All frames are designed for farm environments with ventilation and long-term durability. Huabang exports to more than 100 countries, including clients across Europe, Southeast Asia and the Middle East.

​​​​​​​

Where This Nest Box Works Best?

Both breeder hens in large-scale poultry enterprises and commercial laying hens on typical farms can use the auto egg collecting nest box. With modular construction, you may put multiple units in a row on one house with no interruption to the collection flow.

Smaller businesses might use the same nest box. Backyard farms and small breeding setups can install this scheme with no full industrial layout to take advantage of belt-based collection.

Installation and Belt Maintenance Guidance

Correct installation prevents the egg belt system from slipping. Tensioning roller bolts must be set with the correct spring compression. Belt joints must be overlapped by a minimum of 10cm and have tight stitching on all sides. The tensioning device needs a range of adjustment exceeding 10cm for everyday use.

Daily checkups count too. Check for gaps in the belt joints. Ensure that the belt is not loose or overstretched. Inspect the belt clips and hooks for missing or broken parts. Weekly maintenance involves checking the tensioning spring and removing any feathers or other dirt from the surface of the belt.

Customization and Project Support

Huabang also offers OEM and ODM services and you can order a nest box based on your own plans. The team can modify the nest unit number and layout to fit your actual house length which is handy if your building has non-standard measurements or current cage layout to match.

Every order includes full project support including site planning, system design, thorough configuration list and video installation guidance. Farm operators who need to get their hands dirty to get the system up and operating have access to on-site installation support and foreign after-sales service.

FAQ

Q: What type of chickens is this automatic chicken nest box appropriate for?

A: It is usually used for commercial laying hens, and also can be used for breeder hens in large-scale chicken breeding farms.

Q: Can we order different quantities or sizes to fit our chicken house?

A: Yes. Huabang may design the plan and add the nest units according to your real house length.

Q: Do you offer technical support for installation and commissioning?

A: Yes, Huabang specialists provide assistance and instruction for installation and commissioning.

Q: What is the egg breakage rate for this roll-out nesting box?

A: Under conventional installation and typical feeding management, the egg breakage rate is controlled to be less than 0.3%.

Q: Can this stuff be used for backyard growing and small farms???

A: Yes, it is suitable for both commercial chicken farms and modest backyard breeders.

Q: What is the warranty for this product?

A: All structural and mechanical parts have a 1 year warranty with each unit.

Contact Us

Need pricing, drawings, or a layout plan for your layer house with an auto egg collecting nest box? Email our team at huabangsmart002@gmail.com — we're ready to help.
