chicken nest box

Automatic Chicken Nest Box for Commercial Laying Hens — Low Breakage, Smart Anti-Broody System

Huabang Smart has been inventing and manufacturing poultry equipment since 2012. The chicken nest box shown here is made of zinc-aluminum-magnesium plate, and its size is 1.2 m (L) × 1.4 m (W) × 2 m (H) including the perch. Each unit can house roughly 120 hens, with an egg breakage rate of less than 0.3% and is rated to have a service life of up to 15 years. It is CE and ISO approved, and is ideal for commercial layer operations that demand consistent, low maintenance egg collection.

What Is This Automatic Nest Box?

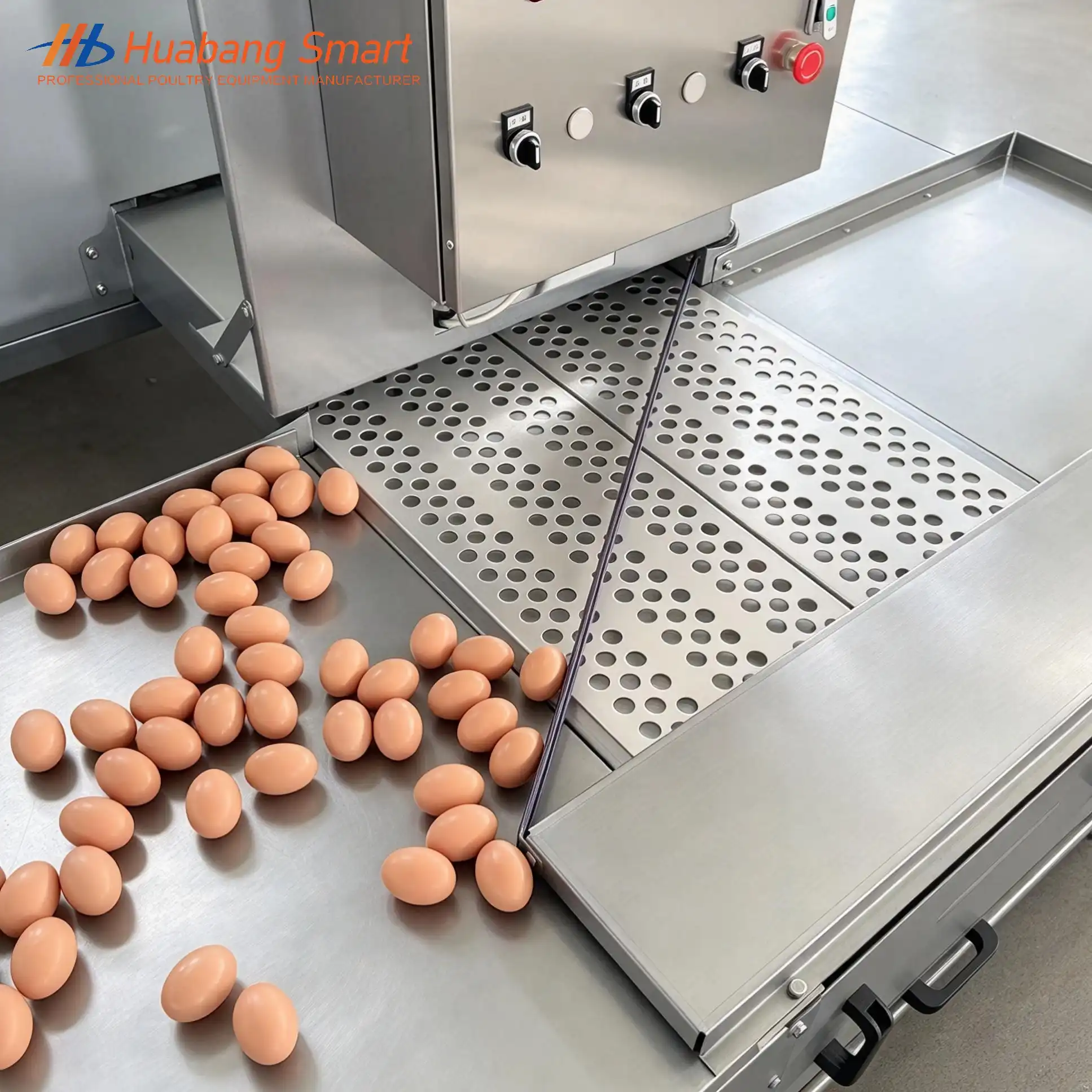

This is a comprehensive automatic laying nest system for big commercial chicken farms. It substitutes the laborious gathering of eggs by a motorised conveying belt and integrates the laying nest, egg-collecting platform, storage box and carrying tail into one device.

The concept addresses two common problems in industrial egg production, namely damage to eggs during collecting and labour expense of manual selecting rounds. The integrated anti-broody raising mechanism and self-adjusting belt alleviate both difficulties during daily operation.

Chicken Nest Box Specifications

Core Product Features

1. Low Egg Breakage Rate

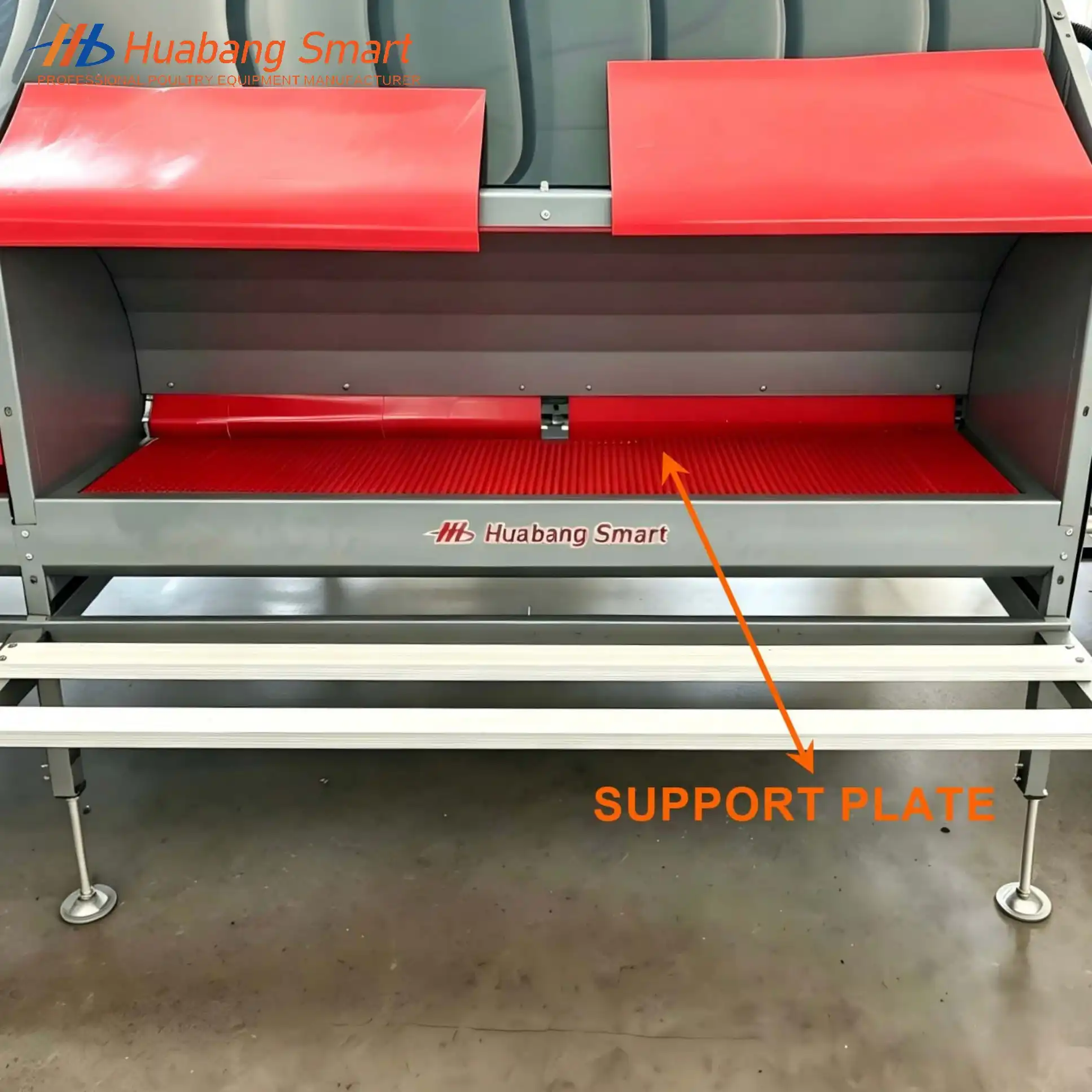

The chicken nest box floor is inclined at 8 degrees and has a buffer roller to softly guide eggs onto the belt, without any sudden impact. Under normal conditions of installation and feeding the breakage rate is less than 0.3 per cent. This can assist reduce grading losses on large commercial farms.

2. Automatic Anti-Broody Lifting Mechanism

A built-in raising system may lift the nest body up at nite to stop hens from roosting in it overnight. This minimises the amount of faeces on the surface of the nest and makes it easier to gather cleaner eggs the following morning – an advantage in commercial situations where egg hygiene grading is important.

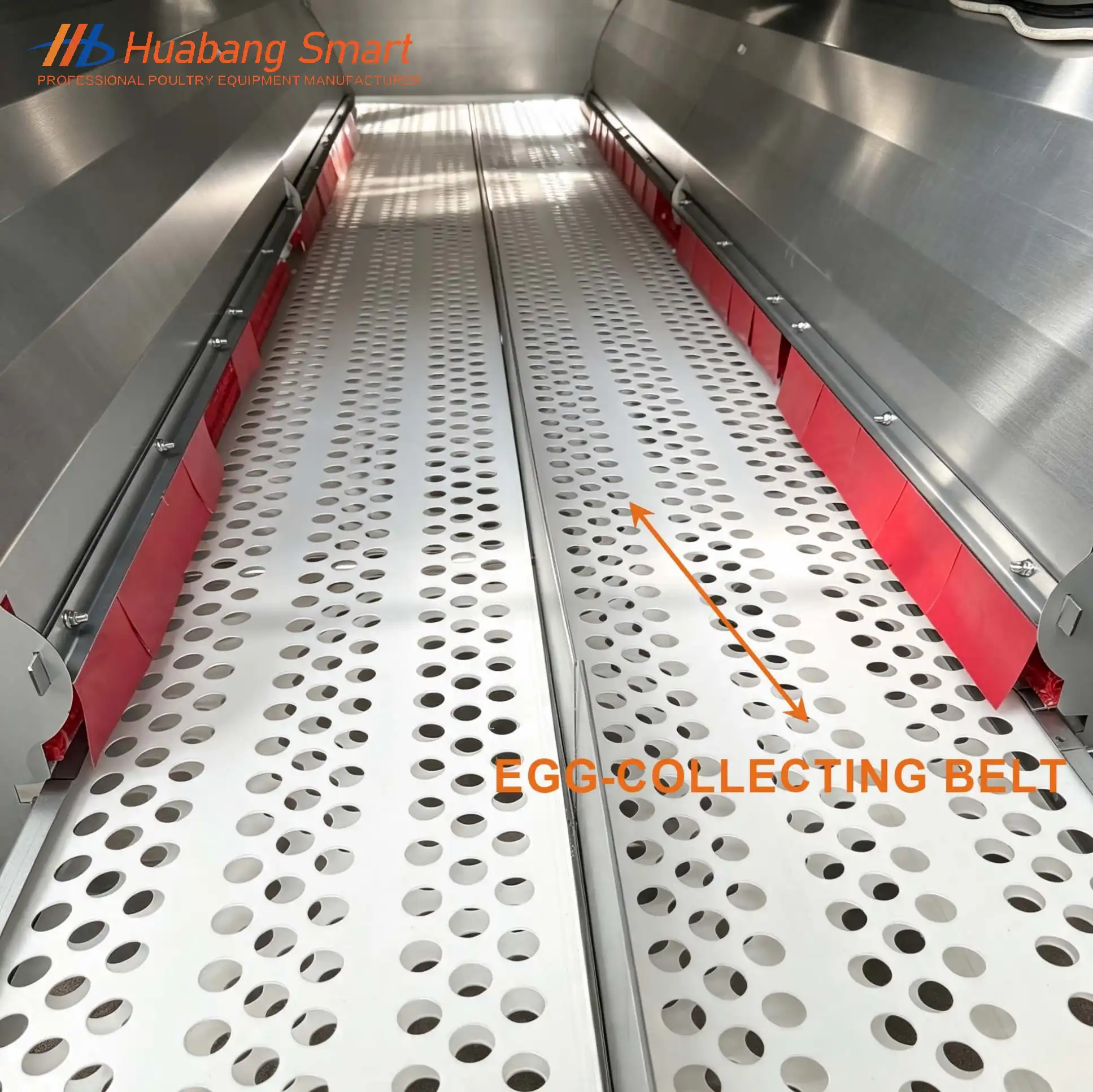

3. Self-Adjusting Conveyor Belt

The rear end of the egg belt has real time tension adjustment and automatic deviation correction. This allows the belt to run smoothly for long durations, and reduces the need for manual re-calibration during normal operation.

4. Modular Integrated Building

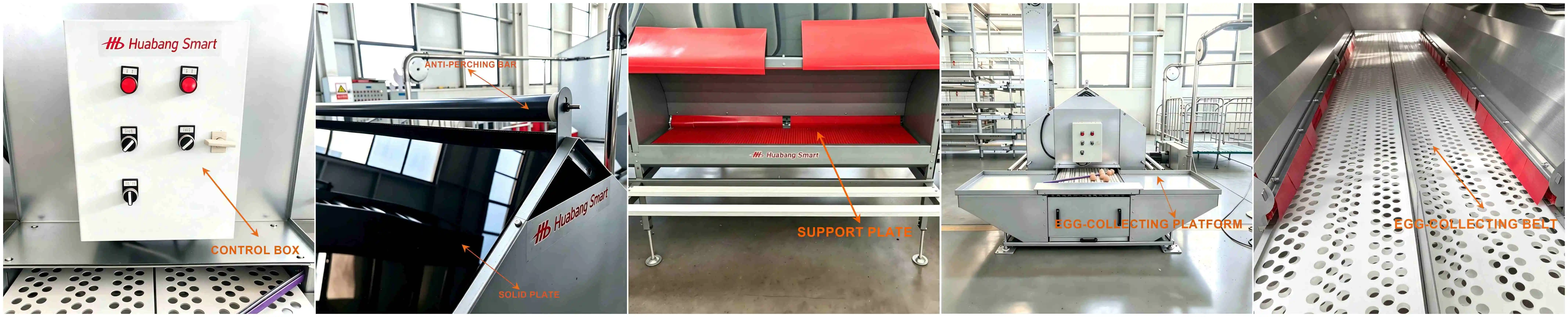

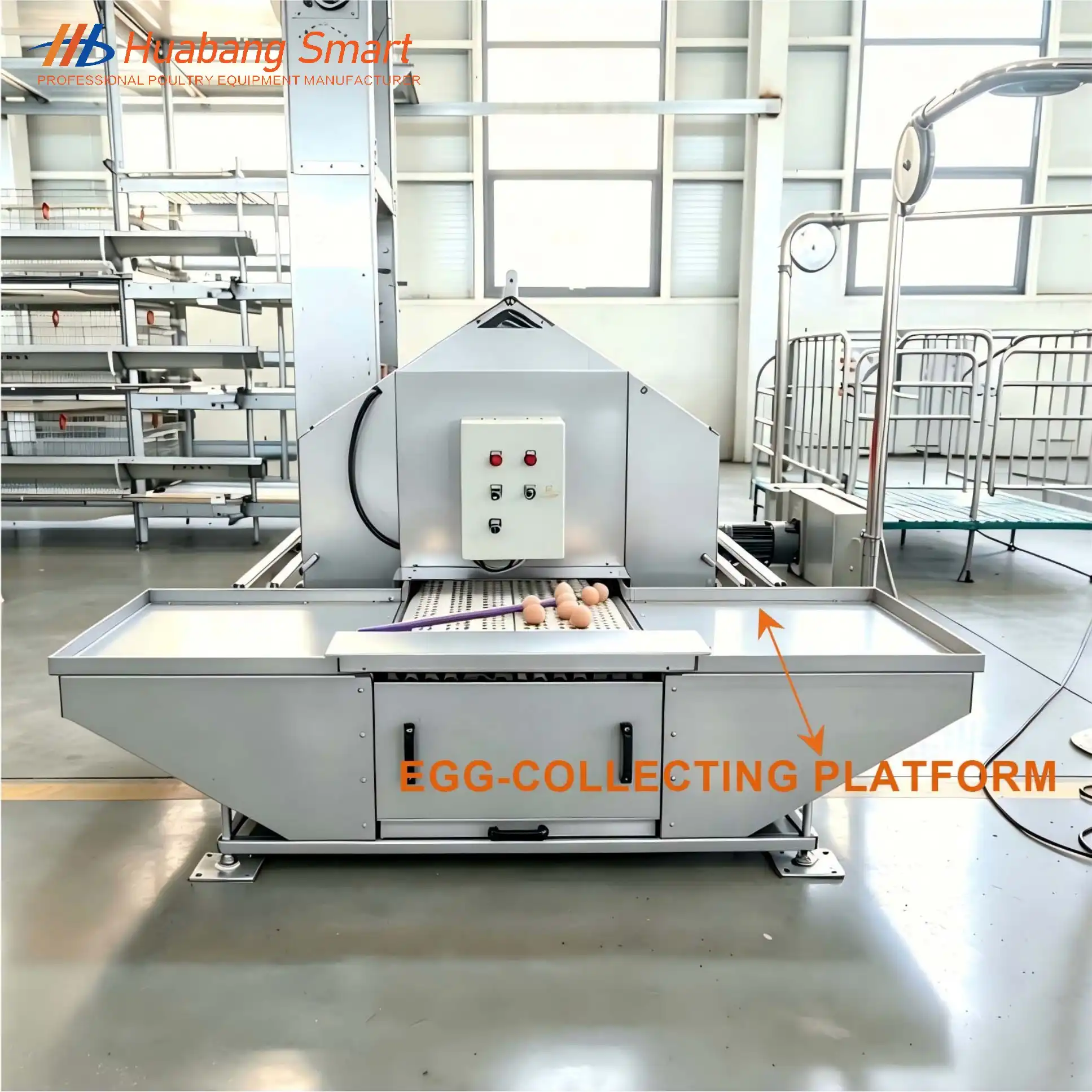

The laying nest, egg collecting platform, storage box and carrying tail are put together as a single unit. It may be immediately connected with common automatic egg collection lines, suitable for large-scale standardised chicken farms.

5. Lower daily labour

Automated collection of eggs removes the need for programd rounds of manual collection. This means fewer labour hours per day for businesses with big flock sizes, and less handling-related egg damage from manual collection.

Material and Build Quality

The frame is made of zinc-aluminum-magnesium sheet, which is corrosion resistant to the high humidity inside enclosed poultry housing. The entire device is stiffened by the hot dip galvanised steel frame structure.

Rated service life up to 15 years indicates architecture for long-term infrastructure investment. The product has CE and ISO certifications.

Application Scenarios

Applicable to the following environment of this chicken nest box:

• Continuous high-volume output commercial layer farms
• Breeder hen homes with a focus on cleanliness of eggs and hygiene control
• Large-scale standardised poultry farms with integrated fully mechanised egg collection lines

Each unit holds roughly 120 hens, and you can fit many units down the length of a chicken house to suit your total flock size.

Customization and Technical Support

Huabang Smart offers OEM and ODM service and the layout of farms is different. The number of nest units can be varied according to the actual length of your chicken house. We support customised configuration according to the project designs.

Technical support is offered following purchase and includes:

• Guidance for site planning and system design
• Configuration documentation in detail
• Video Setup Instructions
• Installation support onsite
• After-sales service overseas
•

FAQ

Q: Which hen types is this product designed for?

A: It is primarily designed for commercial laying hens and is also suitable for breeder hens in large-scale poultry operations.

Q: Can the number of units be adjusted to fit our chicken house?

A: Yes. The quantity and layout of nest units can be configured based on the actual length of your chicken house.

Q: What technical support is provided after purchase?

A: Technical support covers installation guidance, system configuration, and ongoing operational questions through video instruction and on-site service where applicable.

Q: What egg breakage rate can we expect?

A: Under standard installation and normal feeding management, the egg breakage rate is controlled below 0.3%.

Q: What certifications does this product carry?

A: The product holds CE and ISO certifications.

Contact Us

For inquiries about our chicken nest box or to discuss your project requirements, Contact Us at huabangsmart002@gmail.com. We will get back to you as soon as possible.
