Backyard Chicken Nesting Box: Automatic Roll-Out Nest System for Clean, Low-Breakage Egg Collection

Shandong Huabang Agricultural And Animal Husbandry Machinery Co., Ltd. has been engaged in the production of automatic poultry equipment since 2012. This backyard chicken nesting box is a product of its automatic chicken nest box series, manufactured in compliance with ISO9001 and CE certification. Each unit is 1.2m long, 1.4m broad and 1.88m wide with the perch connected, and stands 2m high. The unit is made of a zinc-aluminum-magnesium plate. The cage contains around 120 birds, keeping egg breakage below 0.3% and weighs 40kg. The body of the nest is tilted at an inclination of 8 degrees to roll the eggs toward the belt. Each item is covered by a 1 year warranty.

What Is a Backyard Chicken Nesting Box From Huabang?

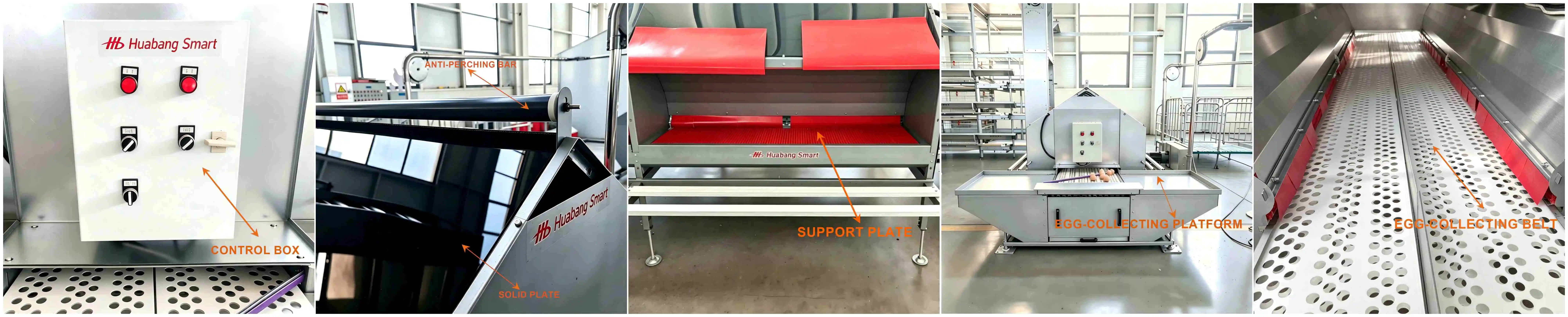

This is an automatic chicken nest box that stands on the floor. Each unit has a bird passage of 0.776m, which gives hens enough room to wander in and nest without crowding. The construction is integrated with egg-collecting platform, laying nest, storage box and transporting tail. This modular construction allows you to dock it directly with automatic egg collection lines as your farm grows. The main features of the backyard chicken nesting box are anti-breakage egg rolling, intelligent anti-broody raising, reliable egg transporting and labour saving operation. These 4 features work together to keep eggs clean and the daily workload low.

Specifications

Key Advantages

Eggs crack very little. A buffer anti-breakage egg rolling arrangement gently and slowly pushes eggs down the belt to assist keep shells intact and decrease pecking at exposed eggs.

Smart anti-broody & anti-perching design. A built-in lifting mechanism lifts the nest body at nite so hens can not stay in overnight. This keeps the droppings out of the nest and the eggs clean following morning.

Conveyor belt, self adjustable. The back end of the belt self-regulates tension and corrects deviation during operation, enabling extended and stable operation with fewer manual re-calibration.

Modular integrated structure. The egg platform, nesting box, storage bin and tail piece are a single connected device which can be attached to automatic egg collection lines so it may be used as a single backyard chicken nesting box installation or for large scale standardised layer houses.

Less labour, more output. The automatic egg collection may avoid the manual picking of eggs by hand, save labour time, safeguard the quality of eggs, and ensure stable production for continuous poultry projects.

Why Choose Huabang Agricultural and Animal Husbandry Machinery?

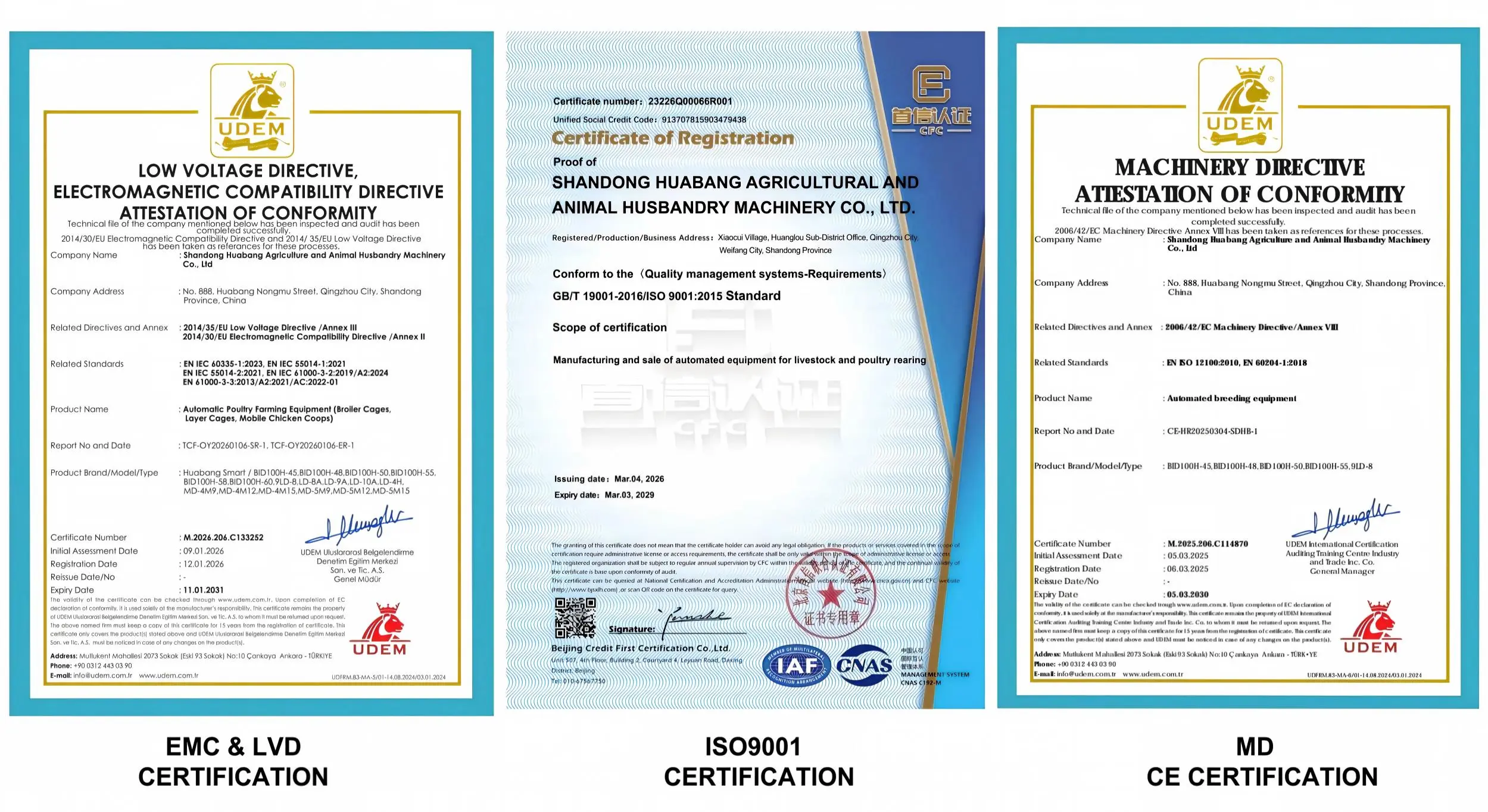

Huabang has an ISO9001 and CE certified manufacturing system, so that each unit leaves the factory with the same quality inspections. The company creates additional livestock structures as well. They use a 3mm thick, hot-dip galvanised steel frame to prevent corrosion, and the center is elevated 5cm to allow for airflow and cooling throughout the farm buildings. Production is standard 30-60 days per order. Huabang provides OEM and ODM service, so you can ask a custom layout according to your own drawings or house length. We offer complete support from site planning and system design, thorough configuration list, video installation guide, on-site installation support to worldwide after-sales service. Huabang is a direct factory supplier, shipping at factory prices and serving customers in more than 100 countries across Europe, Southeast Asia and the Middle East.

Who This Nesting Box Works For

This nest box is applicable for commercial laying hen farms and breeding hen farms in large poultry houses. It will also fit a product configuration for small farms and household flocks that yet require automatic egg handling. Because the number of nest units can be increased or decreased, the basic design can be adapted to fit anything from a tiny backyard coop to a big commercial house.

Customization and Installation Support

Huabang can add the number of nest units according to the length of your chicken house, so your layout is in line with your actual space rather than a fixed size. It is floor standing thus no complex foundation work is required. During the setup process, Technicians will provide video assistance and on-site support. After your system is up and running, we continue to provide after-sales service.

FAQ

Q: What type of chickens is this automatic chicken nest box good for?

A: It is typically used for commercial laying hens but is also suitable for breeder hens on big scale chicken breeding farms.

Q: Can we get our chicken house in a different amount or size?

A: Yeah. Huabang can increase the number of nest units and alter the arrangement according to the real length of your chicken coop.

Q: Do you supply technical support for installation and commissioning?

A: Yes, professional technicians are on hand to provide video assistance and on-site support throughout set-up.

Q: What is the egg breakage rate of this roll out nest box?

A: With typical feeding management and standard installation, egg breakage is less than 0.3%.

Q: Can I use this product for small farms and backyard farming?

A: Yes, this product is good for commercial poultry farms and small backyard breeding setups.

Q: What is the warranty period and is there after-sales support?

A: All units are guarantyd with 1 year guarantee with after sales service overseas from Huabang team.

Contact Us

Do you have more questions about backyard chicken nesting boxes? Email huabangsmart002@gmail.com and our team will respond with details for your poultry house or small-scale setup.
